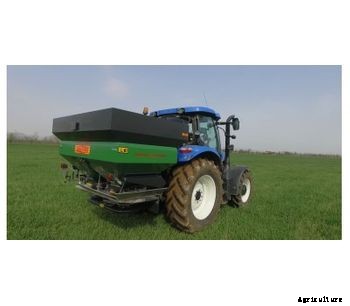

Crono and Elettra add to the several high standard features of the Jolly-Zeus Series an electronic forward speed calibration and a weighing system with weigh cells to conform the spread rate value independently from any variation of the forward speed and of the physical features of the fertilizer in use.
Product Details
- Capacity: from 1400 l to 3000 l
- Distribution: up to 24 m
VIBRO SYSTEM
The absence of inner agitators improves distribution, does not produce powders, enables the spreading of mineral fertilizers, organic amenders and seeds reducing the dosage to apply. Scroll down to discover all advantages.
A Concentate of Efficiency
Frame with payload up to 3600 kg, 2nd and 3rd category hitches with three different positions. Sturdiness and rounded edge design for fast and efficient washes that eliminate all powder debris. Optimum distribution guaranteed by moulded vanes with a double profile and a stainless steel anti-turbulence device positioned above the spreading discs.
ELECTRONIC FORWARD SPEED CALIBRATION
A 7-Inch Multifunction Color Monitor integrates a GPS antenna that detects and transmits the real forward speed to the system without the need to get the signal from any ISO 11786 connectors or the use of wheel speed sensors.
A comprehensive number of spreading tables enable to create/modify/save personalized fertilization jobs, to transmit them via Bluetooth for printing or for managing the reports of the executed jobs.
From the monitor the operator modifies the quantity/hectare instantaneously, activates the border spreading and visualizes the characteristics of the job in execution, the treated hectares, the remaining kilos, the warning of fertilizer low level, or the warnings concerning possible anomalies of the system.
These modes mount a double control, hydraulic and electric, for the distribution opening and closing and for its resulting adjustment.
The instantaneous opening and closing at the beginning and at the end of the field is guaranteed by two DE hydraulic cylinders, while the opening is controlled by two linear actuators constantly.
Two position sensors detect the ON/OFF status of the hydraulic system and therefore the distribution. In order to avoid spreading beyond a field limit, the GPS transmits the signal of distribution start after the tractor has run a distance from the beginning of the field equal to the spreading width of the fertilizer spreader.
“W” VERSIONS: ELECTRONIC AND WEIGHING SYSTEM FOR TOP PERFORMANCES
A double frame integrates two load cells, 5 tons each, that detect the real weight of the product in the hopper in a continuous way, reporting every fertiliser and every physical variation to a distribution curve in order to deliver the exact quantity per hectare required.
The “W” versions with double frame and two load cells positioned in the hitching lower area of the spreader detect precise values also in presence of inclined fields up to 12% in all directions.
