Real-time, non-invasive O2 consumption measurements. RESIPHER replaces 32-well plastic lids with an on-plate monitor — streaming data about the conditions in which your cells reside, directly from your incubator or workstation.
Continuous data streams from RESIPHER's other onboard sensors — including Temperature, Atmospheric Pressure, and Relative Humidity.
Web-based streaming platform, you can monitor and analyze your data anywhere from a desktop, tablet, or phone.
Disposable lids compatible with most standard 96-well plates including Nunc, Greiner, Falcon, and Costar.
Continuous OCR in Any Incubator or Workstation
Get continuous, non-invasive oxygen consumption rate (OCR) measurements for days to weeks from inside any incubator/workstation that fits your cell culture plates.
The RESIPHER series of cell culture monitors are the world's first hand-held devices to measure extra-cellular oxygen flux in standard multi-well plates.
Stream Data Anywhere
With this web-based streaming platform, you can monitor and analyze your data anywhere from a desktop, tablet, or phone.
Data is streamed from the RESIPHER over a USB cable to a storage and control hub outside the incubator/workstation where it can be accessed via the web.
Monitor OCR as well as continuous data streams from RESIPHER's other onboard sensors — including Temperature, Atmospheric Pressure, and Relative Humidity.
Operating Principle
Incorporating Lucid's proprietary, ultra-sensitive dissolved oxygen sensors, the RESIPHER measures the dissolved oxygen concentration gradient formed by metabolically active cells at the bottom of the well.
Measurements occur across a range of heights via the device's integrated, high-resolution z-stage actuation system — eliminating the inaccuracies inherent in fixed probe measurement systems
With sterile, narrow probes (500µm diameter), the system does not restrict oxygen flow to the cells or otherwise alter the media environment in any impactful way.
Up to 32 Wells
The RESIPHER is available in versions instrumenting 4 and 32 wells.
The disposable lids are compatible with most standard 96-well plates including Nunc, Greiner, Falcon, and Costar.

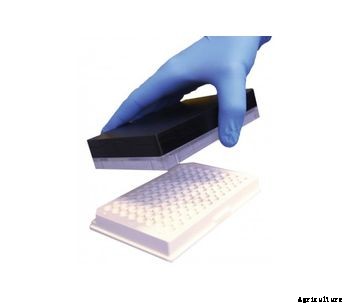

Lids arrive sterilized and calibrated — simply place them on top of your plates and begin your experiment.
Lids are rated for continuous readings throughout experiments lasting up to 4 weeks.
