Drum mowers rotation movement is harmful for the root of the crops. Disc mowers do not harm the crops as drum mowers. In the disc mowers there are oval discs located on the cutter-bar and these discs rotate with 3000 rpm. This rotation creates an air turbulence which uprights the leaned grass.
Disc mowers have a safety mechanism against hitting a hard object. In case of a hit, disc mowers make a move backwards to decrease damage to minimum.

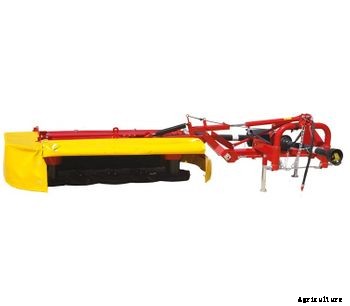

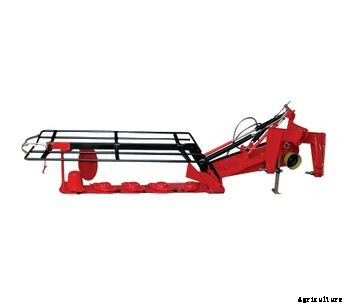

Disc Mower
Number of Disc 4 pcs 5 pcs 6 pcs
Work Width 1650 mm 2100 mm 2450 mm
Required Power 40 hp 40 hp 45 hp
Number of Knives 8 pcs 10 pcs 12 pcs
PTO 540 rpm 540 rpm 540 rpm
Conditioner Disc Mower
Model DMR 210 DMR 245 DMR 280 DMR 320
Number of Disc 5 pcs 6 pcs 7 pcs 8 pcs
Working Width 210 cm 245 cm 280 cm 320 cm
Width 390 cm 430 cm 315 cm 355 cm
Height 95 cm 95 cm 130 cm 130 cm
Lenght 120 cm 130 cm 550 cm 570 cm
Weight 735 kg 800 kg 1390 kg 1460 kg
Required Power 60 hp 70 hp 90 hp 100 hp
Number of Knives 10 pcs 12 pcs 14 pcs 16 pcs
Disc Rotation 3000 rpm
PTO 540 rpm 540 rpm 1000 rpm 1000 rpm
Conditioner Available
