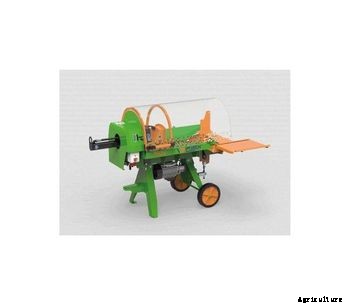

The splitting machine with safe 1-hand operation. With a splitting force of 8 tons you can effortlessly split hardwood and problem wood. The Autospeed function responds to the required splitting force and automatically selects the best feed speed.
Products Details
Save time: thanks to the adjustable splitting strokeyou avoid annoying empty strokes. The splitting wedge can be comfortably adjusted to various wood diameters by means of a hydraulic mechanism and, when needed, quickly changed without tools.
Close the flap and split!
Splitting force 8 t
Max. wood diameter: 40 cm
Cylinder stroke max. 54 cm
1 hand comfort controls with independent return stroke
Adjustable splitting stroke
4-way splitting wedge as standard, hydraulically adjustable
Tank capacity 15l hydraulic fluid
Transport solid rubber wheels ∅ 30 cm and transport aid
Special equipment: Large wood storage table, three-point, chassis
Accessories: 2-, 3-, 4-, 6-way splitting wedge
Polly
Special equipment & Chassis
Valid for initial equipment, incl. assembly.
D Surcharge for three-point hitch Cat. I + II (for machines with electric drive, standard on M2352NR, M2354NR)
L Surcharge for wood storage table Large (865 x 765 cm) incl. additional table on operator side (505 x 350 cm), for post-splitting
T Surcharge for Polly tractor chassis, max. 6/10 km/h, unbraked, not approved for use on public roads, only on private properties (e.g. lumberyard). Ball hitch, no lights
SBL Surcharge for street chassis 80 km/h, parking brake, ball hitch max. tongue weight 75 kg, max. permissible weight: 600 kg
A142 Individual permit / Individual type approval (EBE) for road admission, only possible for deliveries to Austria and Germany!
Accessory Equipment
Handy accessory equipment for more power and convenience for wood processing.
Z2000635 Walterscheid W-Line universal shaft
F0001812 Splitting knife for 2 parts (Ø 0-40 cm)
F0001660 Splitting knife for 3 parts (Ø 10-40 cm)
F0002663 Splitting knife for 4 parts (Ø 0-35 cm), standard
F0001661 Splitting knife for 6 parts (Ø 10-40 cm)
F0003307 Hour counter for machines with E-drive
F0001806 Hour counter for machines with PTO drive, includes rpm display
F0001482 Hour counter for machines with petrol engine
F0004611 Additional tray Tray on the operator side (505 x 350 cm) for the practical splitting of logs
