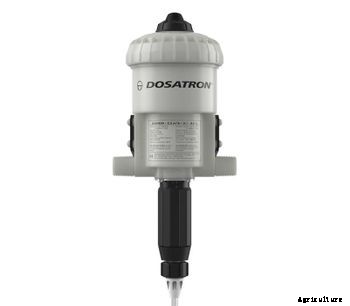

Specific Features: The Expert D25 AO range allows, thanks to a selection of materials with high chemical resistance, the dosage of concentrated organic acids without pre-dilution. Proportional dosing and without electricity. Proportionality dependent on water flow. Integrated homogenization. PVDF body and Kalrez dosing seals.
Specifications
- Injection range0,1 - 0,9 % [1:1000 - 1:111]
- Water flow range10 l/h - 2,5 m3/h
- Operating water pressure0,3 - 6 bar
- Concentrated additive injection0,01 l/h - 22,5 l/h
- Stroke volume0,45 l
- ConnectionsNPT-BSP 3/4'M
Serial Equipments
- PVDF housing for highly concentrated acids and other aggressive concentrates
- Seals for highly concentrated acids (>15%)
Sectors
- Pig farming
- Poultry farming
- Rabbit farming
- Cattle farming
