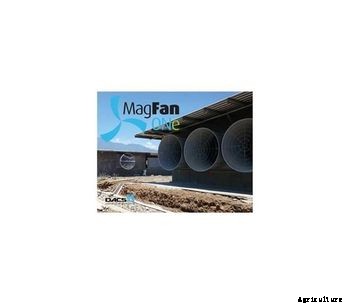

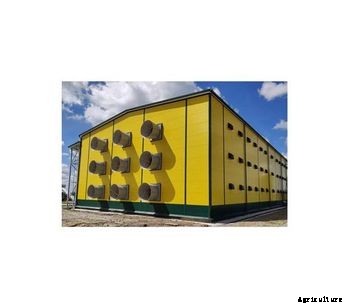

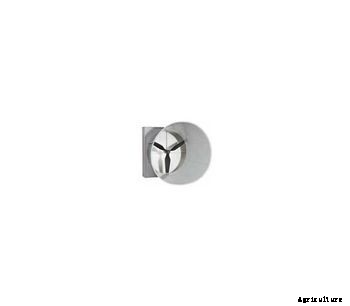

MagFan ONe - Conventional On/Off Wall Fan

Product Details

• Air Flow Ratio 0,86 (capacity @ 0.20” WC / capacity @ 0.05” WC)
• Cfm/watt 22,4 (measured at full speed ( 720 rpm) @ 0.1” WC)

MagFan ONe – Best in Test at Bess Lab
Each year, Bess Lab, Illinois, and University of Georgia define the top 1% of all fans tested by two key parameters:

1. Energy Efficiency Rating should be 22 CFM/Watt or higher
2. Air Flow Ratio (AFR) should be 0.79 or higher

MagFan ONe stands out
With 22.4 cfm/Watt MagFan ONe has one of the highest Energy Efficiency Ratings of all fans tested at Bess Lab and therefore it becomes a member of the top 1% fans. With an Air Flow Ratio of 0.85 MagFan ONE has the best Air Flow Ratio of all the top 1% fans and it significantly outperforms the top 1% fans when it comes to capacity. The results are impressive. At 0.1” WC Magfan ONe delivers 36900 CFM which is a good 30% more than the best of the rest. In other words, it outperforms all other top 1% fans by a wide margin.

MagFan ONe in short:

• Built to last, maintenance-free
• Capacity up to 69,500 m³/h (40,900 cfm)
• Pressure capability up to 100 Pascal
• Asynchronous 3-phase motor: 1.8kW, 720 rpm, 50Hz
• Saves 75% on transportation costs
