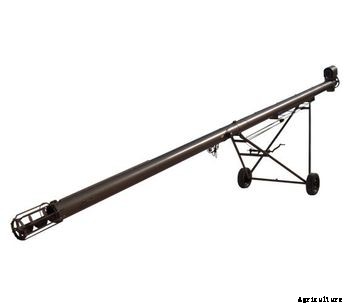

DEMIR - Cereal Auger

DEMIR - Cereal Auger Our machine is used for grains ( wheat, barley, corn etc.) and also other manure materials such as granule plastic row material. We have three options with these conveyors. Options depend on capacity, maximum conveying high levels and electric motor phase. The diameter of pipe is starting 114mm-139mm-168mm-192mm-220mm. The conveyor length is starting 4-12 meters. Electric motor phase options we have two alternatives 220 or 240 volt (in Ø 114mm and Ø 140mm only) and 380 volt. Conveyor height can be adjustable by manually steel rope system.

Cereal Auger

Model                              506                    508                   5010
Pipe Diameter            139 mm              139 mm            139 mm
Length                         6200 mm            8200 mm          10200 mm
Width                          1650 mm            1650 mm           1650 mm
Max. Height               2800 mm            3350 mm           3900 mm
Min. Height                2000 mm            2250 mm           2400 mm
Capacity                      15-20 t/h            15-20 t/h            15-20 t/h
Weight                        210 kg                 270 kg                 310 kg
Work Rotation           500 rpm              500 rpm             500 rpm
Motor Power             3 hp – 220 V        3 hp – 220 V       4 hp – 220 V
