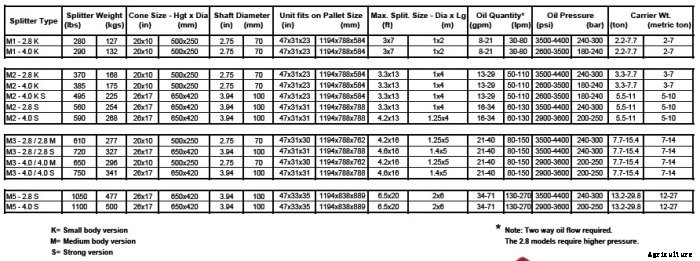

The CBI Log and Stump Screw is designed to split oversized butt logs, pole wood, and stumps with ease and efficiency. Ideal for all excavators, log loaders, front-end loader/backhoes, farm tractors and skid steer units. Size and type of log screw you need depends on the machine's hydraulic flow capacity, pressure and tonnage. Splits wood up to 7 feet in diameter and up to 20 feet in length.
The CBI Log and Stump Screw is a patented tool designed to split—with ease and efficiency and without the need for a larger machine—oversized butt logs, pole wood, and stumps into more manageable-sized material to be further processed into firewood, wood fuel, or other value-added finished products. Various sizes are available to fit almost any machine with auxiliary hydraulics. The size and type of log screw employed depends on the machine’s hydraulic flow capacity, pressure, and tonnage. Just lightly spot drill the tip of the screw into the wood and now logs can be easily lifted and repositioned as needed. With the CBI Log and Stump Screw, you can bring your machine right to the lumber, an important time and cost-saving advantage.
Two optional attachments, designed specifically for our Log and Stump Screw, offer even greater flexibility while working with timber. The CBI Stump Grinder (available for the M3 and M5 models) provides the extra strength to grind through even the toughest stumps. The 20' and 25' diameter grinders fit the M3 and the 25' and 30' diameter grinders fit the M5. The CBI Drilling Auger (available for all model Log and Stump Screws) is fitted with shovel-tines and a double screw, allowing it to quickly and efficiency drill holes for fence posts or for tree planting. Each of these compact and ruggedly built attachments offer you the same quality and reliability you expect from CBI.
The log charging table consists of alongitudinal conveyorto push the logs forward and can be upgraded with across conveyorfor log storage and as a buffer. The hydraulic drive is always provided by the SpaltFix firewood processor. The longitudinal conveyor is available as a chain or roller conveyor. The cross conveyor is suitable for quantities up to 5 m³ or 1.5t/m.
The JBM stump grinder is equipped with a high-performance 13 hp Honda petrol motor. Due to its design the machine is ideal for use in narrow workspaces. The stump grinders JBM 2913 BD are equipped with a KDS system. The advantage of this system are Constant heavy use without tiring Constant heavy use without tiringConsiderable hig
Engine 389cc Honda GX Engine. Teeth Greenteeth® 500 Series Teeth (8). Cutter Wheel 14 Dia. x .375 Thick. Disc RPM 2200. Drive Direct Belt Drive; 3 Groove Power Band with Idler Bearing Belt Tensioners. Tires 4.80/4.00-8 Adjustable Brake Band. Weight 300 lbs. Dimensions 58 L x 32 W x 51 H. Cutting Capacity 20 Above Grade, 16 Below Grade. Towable Optional Tow Package Available (337-357TP)
Madill’s purpose built 4000 represents the finest quality extreme duty forestry machine available today. This 106,000 lbs machine offers an excellent power to weight ratio for outstanding overall performance in any environment or condition. With its Volvo TAD1371VE 13 liter Tier 4 engine, the 4000 provides superior hydraulic flow for exceptional lift power, swing torque, and tractive effort, which results in high productivity capabilities.
