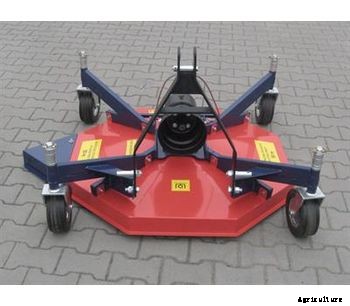

ZILLA lawn mower is designed to mow grass on lawns, sports fields, golf courses, parks and gardens. ZILLA is designed to work with micro tractors that have a three-point linkage system Category I and PTO.
The main structural component of the lawnmower is ...
-
The main structural component of the lawnmower is a steel body which is also the cover of the cutting knives. The two blades are attached to the ends of the rotor through angular gear.
-
The lawn mower is based on four running wheels in their swivel casings.
-
The body of the mower can be mounted on the drive chassis to get a side or rear discharge of the mowing grass.
You might also be interested in our different mowers from our production.
Technical Specifications
- Mounting method: Three-point linkage from the back. Category 1
- Drive: From the tractor PTO by articulated telescopic shaft and angular gear
- PTO rotation: 540 turns / min (left/right)
- Slope mowing area: 12º
- Working unit: The rotor with replaceable blades
- Number of replaceable blades: 2
- Wheels: In the swivel casing
- Cutting height regulation: Spacers (washers) on the axis of support wheels
- Ejection mowing grass choice: Manually by changing the appropriate position and mounting the body mower chassis and change of a cover type
- Ejection mown grass shield: Type: Right / Left / Rear
- Cooperating tractor: Min 10 kW / 13.6 KM
- Cutting width: 1 016 mm
- Cutting height: 25 – 100 mm
- Mowing height regulation: Manual by supporting wheel and the tractor’s hydraulic lift
- Working speed: 7 km/h
- Working width: 1 330 mm
- Length: 1 200 mm
- Height: 850 mm
- Weight: 85 kg
