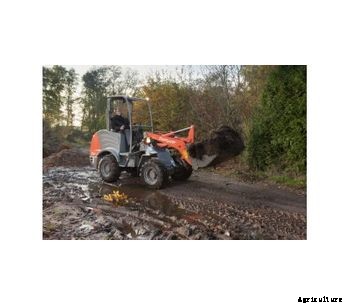

The AR 30 has compact dimensions and a small turning circle. It’s perfect for horticulture, landscape gardening and agriculture applications, or on small construction sites. The Perkins Engine 403D-15 meets all the requirements of the off-highway emissions legislation for Stage IIIA, Tier 4 Interim. The hydraulic quick-change attachments are compatible for models AR 30 - AR 40.
Technical data
Engine / Drive
- Perkins Diesel Engine 403D-15
- 24,6 kW at 2800 rpm
- Output-regulated hydrostatic drive with pressure cut off and closed circuit acting on all 4 wheels
- 1st and 2nd hydraulic gear can be engaged under load
Axles / Steering
- Fully hydraulic steering angle of 40° to each side, ±12° angular movement at rear of vehicle
- Rigid axles with planetary reduction gears in wheel hubs
- Fully hydraulic center pivot steering
- Emergency steering function
- 10.0/75 – 15.3 MPT – Multi-purpose tires
Operating data / Kinematics
- Powerful and solid Z-kinematics with high tear out force
- Track width: 1061 mm
- Tear out force: 2430 daN
- Torque: 1900 daN
- Lifting capacity at ground level: 1700 daN
Pallet fork attachment
- Data for distance to center of gravity of 500 mm:
- Static tipping load, articulated: 871 kg
- Lifting capacity: 1200 daN
- Payload 80% even surface: 697 kg
- Payload 60% uneven surface: 523 kg
Areas of application
- Landscape gardening
- Agriculture applications
- Small and narrow construction sites
Tear out force
Standard shovel capacity
Tipping load straight / articulated
Operating weight
