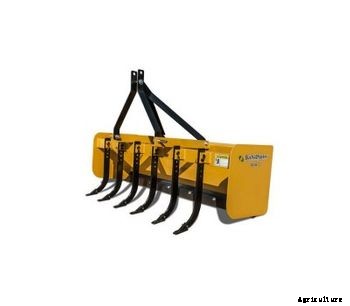

Heavy Duty Box Blade

Heavy Duty Box Blade

The Heavy Duty Box Blade is designed for rugged use by landscapers, farmers, homeowners, and in light construction. Great for landscaping, land leveling, back filling, grading, and many other applications.

Specification

Working Width
MD-BB-60 – 60″ | MD-BB-72 – 72″ | MD-BB-84 – 84″

Capacity
MD-BB-60 – 10.4 cubic feet | MD-BB-72 – 13.4 cubic feet | MD-BB-84 – 14.6 cubic feet

Weight
MD-BB-60 – 415 lbs. | MD-BB-72 – 460 lbs. | MD-BB-84 – 520 lbs.

Shanks
MD-BB-60 – 6 shanks | MD-BB-72 – 6 shanks | MD-BB-84 – 8 shanks

Shank Material
5/8″ thick x 18″ x 2 1/2″ HRS

Shank Tip Construction
Replaceable, casted heat treated steel. Bolt-on pins.

Shank Beam
4” x 4” x 3/8” slotted steel tubing with tabs welded on for quick adjustment for each shank.

Lift Mechanism
Manual lift with quick release pins at each shank

Moldboard
14” high with additional bent reinforcements

Side Panels
1/4″ thick x 18″ high x 25″ deep

Bucket Depth
30″

Bucket Reinforcement
Two welded braces to rear of bucket; gusset between side panel and moldboard

Cutting Blades
MD-BB-60 – 3/8” thick x 6” x 59 1/2” high carbon, heat treated
cutting edges; reversible and replaceable
MD-BB-72 – 3/8” thick x 6” x 71 1/2” high carbon, heat treated
cutting edges; reversible and replaceable

Minimum H.P. Rating
40 HP

A-Frame Material
5/16″ x 2 1/2″ bent HRS

3-point Hitch type
Hitch pin Cat. 2

Vertical Shank Positions
5
