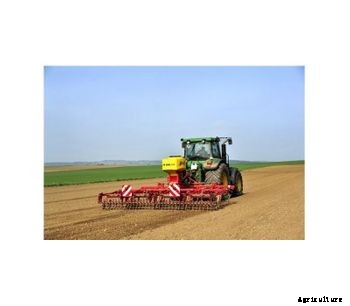

Model PS 500 M2 - Pneumatic Sowing Machine

Model PS 500 M2  - Pneumatic Sowing Machine

With its 500 l volume, the PS 500 M1 is a brilliantly versatile implement for farmers with large areas to cultivate and for agricultural contractors, that is ideal for combining with a range of tilling implements. Thanks to its electrically driven sowing shaft, which continuously regulates the seed flow, it is possible to apply exactly the quantity required of any seed and to adjust this while driving. The electric control box allows the sowing process to be convenintly monitored and controlled from the driver‘s seat.

Benefits

Applications

Technical Data

Working width

Dimensions
H 125 cm, W 80 cm, D 125 cm

Seed tank
Plastic tank with 500 l capacity

Net weight electr./hydr.
93 kg / 116 kg

Power data
12 V / 25 A

If equipped with hydraulic fan:
1 single acting valve (coupling size 3) + 1 pressure-less return (coupling size 4) necessary; max. pressure: 150 bar, max. oil amount: 45 l/min

Accessories

Standard Scope Of Delivery
