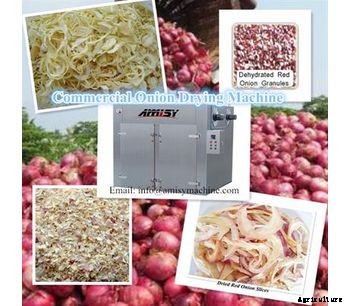

Amisy - Commercial Onion Drying Machine-Hot Air Circulation

Heat source can be chosen from steam and electricity. Comparing these two heating ways, electricity heating way is recommended due to more convenient and secure than steam heating way. Capacity of each batch for choice: 60kg/batch, 120kg/batch, 240kg/batch, 360kg/batch, 480kg/batch Pls tell us which capacity is suitable for u. Contact [email protected] Website: www.vegetable-machine.com

Specifications

Technical Data of Hot Air Circulating Drying Oven

Model AMS-RXH-7-C AMS-RXH-14-C AMS-RXH-27-C AMS-RXH-41-C AMS-RXH-54-C Specifications CT-C-0 CT-C-I CT-C-II CT-C-? CT-C-IV Capacity of each batch 60kg 120kg 240kg 360kg 480kg Power of Fan 0.45kw 0.45kw 0.9kw 1.35kw 1.8kw Consumption of steam 5kg/h 18kg/h 36kg/h 54kg/h 72kg/h Total Power  9kw/h 15kw/h 30kw/h 45kw/h 60kw/h Thermal area 5m2 20m2 40m2 80m2 100m2 Air volume Temperature used 3450m3/h ±2°C 3450m3/h ±2°C 6900m3/h ±2°C 10350m3/h ±2°C 13800m3/h ±2°C Quantity of trays 24 48 96 144 192 Overall Dimension(mm) 1460*1000*1750 2300*1200*2300 2300*2200*2300 2300*3220*2000 4460*2200*2290 Baking vehicles 1 2 4 6 8
