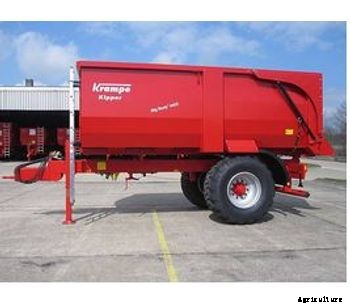

Big Body - Model 460 E - Single Axle Tippers

Products Details

The trailer?s superior level of specification includes a 40km/h package, stronger axles, a hydraulic support foot, a hydraulic tailgate, a conical body, flotation tyres and of course an excellent chassis. All axles are designed for a maximum speed of 80km/h.

The Big Body^® 460 E is more than a pure agricultural trailer. It is in fact a true all-round machine.

This Big Body^® 460 E single-axle body tipper is currently our best selling trailer to mid-sized agricultural operations. Hooking up to 75-100hp (55-74kW) tractors, it combines high transport capacities with a very low dead weight and excellent running gear.

Benefits

• Well-conceived design
• Ideally suited to lowand mid-sized operations or applications in confined spaces
• Well-proven design, which is built in high unit numbers; great value for money
• Standard 40km/h package, 1.95m trackwidth
• Standard conical body, hydraulic tailgate with pressure accumulator
• Standard 550 x 60/-22.5  16 PR flotation tyres, 404 tread
• The new body boasts exciting detail enhancements. Click on Big Body®

Technical Data

• GVW to Ger. Law 12.500 kg
• dead weight ca. 3.300 kg
• payload to Ger. law ca. 9.200 t
• technical payload 11.000 kg
• drawbar starre ZV 18II mit Obenanhängung/ Zugöse DIN 11 026 40 mm
• permissible tongue load 2.000 kg
• minimum traction requirement 55 kW (75 PS)
• standard supporting device hydraulischer Stützfuß zum umklappen mit Dreiwegehahn an die Kippzylinderleitung gekoppelt
• oil requirements/ tipping angle 16 l / 51°
• telescoping ram/ Stroke 1.860 mm/ 4-stufig
• lift capacity in grain ca 14.000 kg
• braking system Druckluftbremse/ Zweileitungsanlage
• axle diameter/ -stud 150 x 150 mm / 10-Loch
• brake dimensions 410 x 180 mm
• track width 1,95 m
• wheel bearing load rating per axle 14,5 t Achslast bei 25 (40) km/h
• standard tyres 550/60 R 22,5
• platform height, unladen on 550/60 R 22,5 tyres 1,35 m
• recommended tyres 600/55 R 26,5; 650/55 R 26,5; 710/50 R 26,5
• internal body dimensions 4,65 x 2,32/2,22 x 1,52 m
• body height without silage kit 1,52 m
• silage kit, standard heights 60 cm
• transport capacity without silage kit 15,7 m³
• transport capacity with silage kit 60 cm 21,8 m³

Dimensions

• body length L 4,65 m
• body width 2,32/2,22 m konisch
• body height H 1,52 m
• hight at 35° tilt and 1.52 m body W35 5,27 m
• hight at 51° tilt and 1.52 m body W51 5,88 m
• platform height, unladen on 560/60 R 22,5 tyres P 1,35 m
• dump hight at 35° tilt C35 1,10 m
• dump hight at 51° tilt C51 1,04 m
• hitch height A ca. 88 + 94 + 100 cm
• hitching height G 6,27 m
• overall height - 1.52 m body F 2,86 m
• length centre-centre pin M 6,00 m
• ground clearance B 0,85
