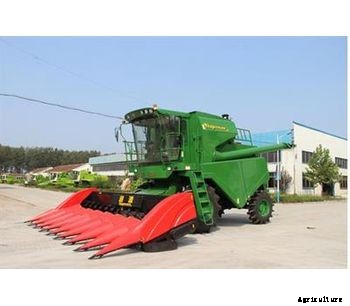

D80 combine harvester is R&D independently by the Shandong Runyuan Industry Co., Ltd. by absorbing both domestic and abroad advanced technology of harvesters. This type of machine adopts the longitudinal axial-flow closed roller construction, can complete the whole-process operations of threshing and harvesting the crops such as wheat, rice, corn, soybean, buckwheat, millet, oilseed rape, etc., and has the features such as compact structure, perfect performance, high working performance, etc., and the user can purchase as per the needs.
Characteristic
Strong power,high efficiency
- Roller : The longitudinal axial-flow closed roller is more applicable to crops with big-sized grain, the multiple disengaging pawls can be selected to use depending on the change of crops, the helical blade induces and feeds in materials more smoothly, and its deed load is large, seldom blocking;
- Grain unloading : The grain unloading mechanism is improved on the basis of foreign machines, with high elevation, and being flexible and rapid.
- Powerplant : It is configured with Yuchai engine (230 HP), with abundant power and high harvesting efficiency.
Reliability
- 1. Cleaning : Adopt four groups of screw conveyers to convey and clean, adapt to harvesting in various terrain and under various weather conditions, and the returning screen box of grain shaking and returning plate is not blocked and leaked.
- 2. Stripper beater : The blade type stripper beater transmits power, has the function of impurity separating and straw chopping, and is equipped with chopping dead knife, the height of which can be adjusted depending on different crops. It is reserved with dismounting opening for ease of maintenance.
- 3. Granary : With a large-volume granary of about 7 square meters, and installed with scraper blade and screw conveyor for lifting grain so as to ensure the material exactly falling into the granary
Safety usage
- It is equipped with 8Kg powder fire extinguisher, which can effectively put out the early fire caused by combustible gas, electrical equipment, and flammable liquid like oil, organic solvent, etc..
- Transmission : The belt and chain are adjustable, each with distinctive features, and the clutch operation mechanism each can be self-locking, easy for adjusting and reliable for running.
Technical Parameters
- Harvesting rows : 8
- Overall dimension(L*W*H)(mm) : 9450*5340*3850
- Whole weight(kg) : 9200
- Applicable scope of row spacing(mm) : 500-700
- Engine power(kw/hp) : 169/230
- Engine model : YC6A230-T20
