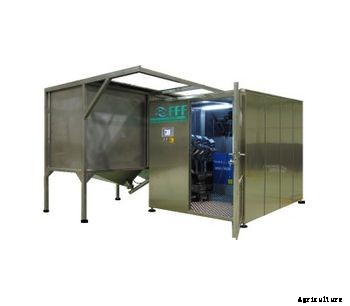

Models from 20 up to 200 outlets to use with hoses from 25 mm up to 63 mm of external diameter and up to 8 silos with average storage of 2 cubic meter each one. Feeder allows to mix pellets up to 12 mm, sending doses from 10 grs up to 200 kg
Technical Data
- Hoses 36
- Diameter Hose 25
- Distance 150m
- Pellet Size >0,5mm & <2mm
- Number Silos 4
- Total Capacity 4,5m3
- Quality AISI 304 satin
- Electrical Consumption Starting 10KW | Working 4KW
- Size (LxWxH) 1,8m x 2.2m x 2,4m
- Weight 2200 Kg
- Compressor/Cooler Compressor MSM 4
- Engines SEW
- Dispenser AISI 304 diameter 25
- Reducer Engine Spiroplan WF20
- Rotary Valves AL-100 Inox
- Automaton Rockwell
- Software 3FS | .NET | SQL
- Sensors Capacitive in Silos
- Standard Technology Kaeser, Rockwell, SEW
