HRS - Model AS 3 Series - Annular Space Heat Exchangers

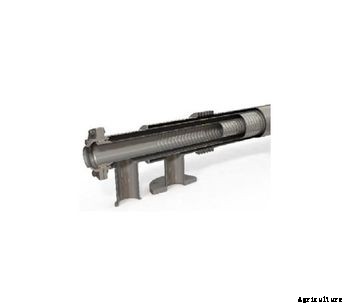

The HRS AS 3 Series is a fully stainless steel, triple tube heat exchanger designed for applications with viscous products. The product flows through the annular space and the service fluid flows through the inner and outer tubes to ensure even heating or cooling. The removable inner tube allows for easy inspection of the annular space. Using HRS’ corrugated tube technology, both heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is minimised.
Features
Corrugated tubes for increased heat transfer for turbulent flow applications
Bellows are fitted as standard to absorb differential expansion between shell and annular space

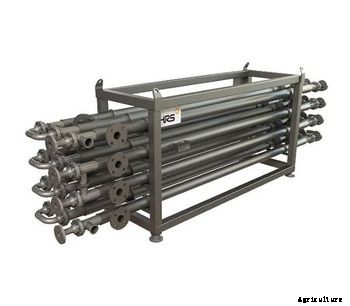

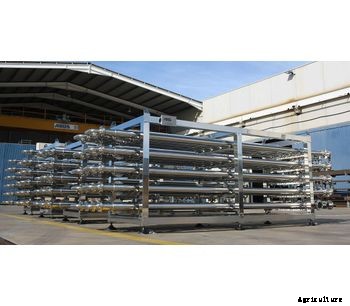

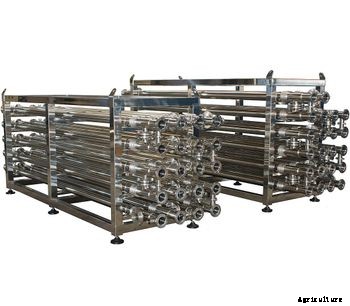

Multiple units can be interconnected and have the option of frame mounting, insulation and cladding in stainless steel
Smooth tube option available for laminar flow applications
Applications
Typical Applications of the HRS AS 3 Series Heat Exchanger Include:
Higher Viscosity Products
Fluids Containing Fibres or Small Particulates

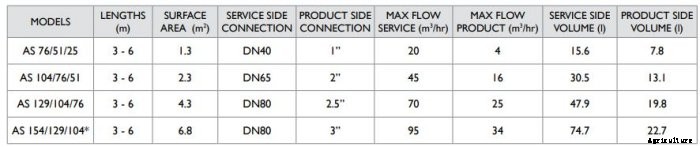

Technical Data
Standard Materials of Construction:
Service side: AISI 304 stainless steel
Product side: AISI 316L stainless steel Other material options available
Standard Connections:
Service side: Flange
Product side: Clamp All flange & clamp types available
