HRS - Model MI Series - Hygienic Multitube Heat Exchanger
The HRS MI Series is complete stainless steel shell and tube heat exchanger designed for hygienic applications. The product flows through the interior tubes and the service fluid flows through the surrounding shell. The MI Series is an ideal heat exchanger for pasteurisation applications. Using HRS corrugation technology, both heat transfer and efficiency are increased over standard smooth tube heat exchangers. In addition, potential fouling is minimised.
Product Details
Expansion bellows are fitted to absorb the differential expansion between the shell and the inner tubes. Multiple units can be interconnected for larger applications. Options include frame mounting, insulation and stainless steel cladding.
The HRS MI Series is suitable for products with low to medium viscosities in hygienic applications.
Features

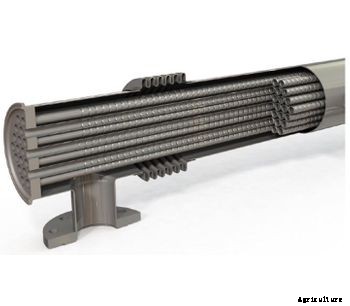

Corrugated tubes for increased heat transfer
Bellows are fitted to absorb differential expansion between shell and inner tube

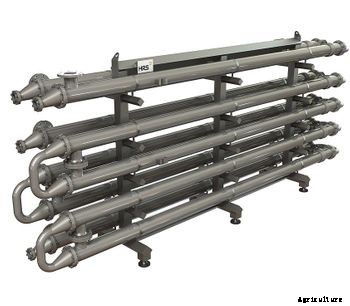

Multiple units can be interconnected and have the option of frame mounting, insulation and cladding in stainless steel
Applications
Low-Medium Viscosity Fluids
Food Industry Applications

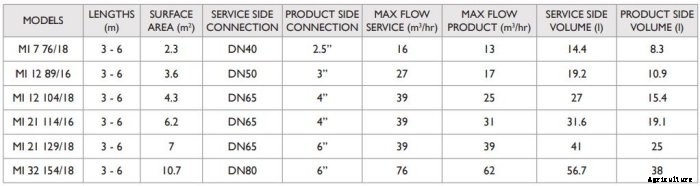

Technical Data
Standard Materials of Construction:
Service side: AISI 304 stainless steel
Product side: AISI 316L stainless steel Other material options available
Standard Connections:
Service side: Flange
Product side: Clamp All flange & clamp types available
