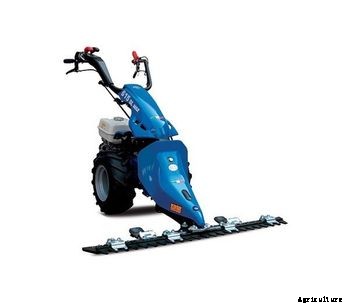

The BCS 615 SL Max mowers have a gearbox withtwo forward and two reverse speeds and a quick reverserto change the forwarding direction. You may choose from two types of gasoline engine: Honda GP160, 4,8 hp orHonda GX270, 8,4 hp.
The cutter bars available for the 615 SL Max have ...
The cutter bars available for the 615 SL Max have a working width of cm. 80, 100, 115 and 135 in the “Laser” version and cm. 115 in the middle cut fingers versions.
Equipped with adifferential with lock which allows a better maneuverability, the motor mowers 615 SL Max can be used in a versatile way for many maintenance operations and in any type of ground.

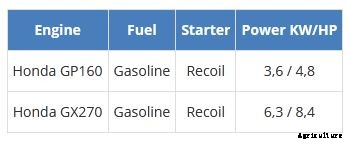

Engine
Dimensions
Width min / max (without attachment):
with wheels 16x6.50-8: 566 mm
Technical Features
No. of speeds FWD/REV: 2 + 2
Quick reverser:yes
Clutch:self-ventilating conic clutch
Differential with lock:yes
PTO:independent at 990 rpm with engagement in oil bath
Brake:no
Driving positionwith height and side adjustable handlebar mounted on shock absorbers to reduce vibrations
Weightwith GX270 engine, 16x6.50-8 wheels, oil bath transmission and cm. 115 cutter bar: kg. 112
