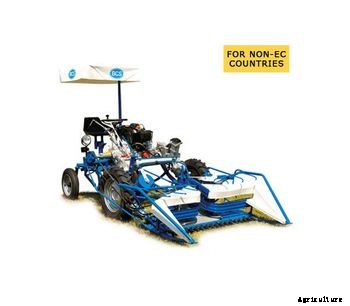

The 280 reaper-binder is the ideal machine for cutting and binding sheaves of wheat, sesame, lavender and officinal herbs while comfortably sitting in the operator's seat. The steering wheel acts on the rear wheels. The differential with lock and the independently-controlled brakes on the two wheels achieve easy manoeuvring of the machine on every type of ground.

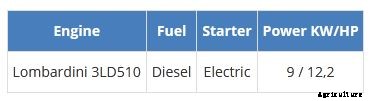

The 280 reaper-binder was studied to last over time and is operated by asingle-cylinder Lombardini diesel engine 3LD510 by 12.2 HPand has a mechanical drive with4 forward gears and 1 reverse geartransmission.
PTO engagement, through gear drive, is lever operated.
Cutting width is 140 cmand theforks on the cutting barmove continuously and constantly to convey the cut crop towards the binder.
Thebinderis patented by BCS and has extremely refined technique: it adjusts binding of cut crop and cutting of the twine when the sheaf is ready.
The sheaf diameter can be adjusted in four positions through a dedicated spring.
Lifting and lowering of the reaper-binder is hydraulically operated through a pedal control.
Thanks to thetwo work lightspositioned on the sides of the operator's platform, the 280 reaper-binder can be used for night work as well, and in case of poor light conditions.
For hydroponic greenhouses, we have our HS HANGING SYSTEM with the highest level of technology and the most complete structures. This system is hung from the structure of the greenhouse, allowing the crop to be in the best position for manual work to be carried out on it, with a perfect slope for the collection of what is drained off.
Different versions: Electric single phase (220 V) or three-phase (380 V). Features Steering wheel cast Guide precision blade brass, up and down in series Rubber cover without glue - Easily replaceable Carriage O
The model chipper 20-40 CHIPPER ENERGY is one of those chipper machines designed by Gandini mechanics to service the forestry sector, as it is capable of producing high quality wood chips used in the energy sector. The design of the chipper CHIPPER ENERGY 23-42 was based on a system of cutting blades on the drum, while all the operations that can be performed for the production of wood chip material can be controlled electronically. The CT 23-42 is equipped with modern NoStress and noblock and a
The model chipper 30-60 CHIPPER ENERGY is one of those chipper machines designed by Gandini mechanics to service the forestry sector, as it is capable of producing high quality wood chips used in the energy sector. The design of the chipper CHIPPER ENERGY 30-60 was based on a system of cutting blades on the drum, while all the operations that can be performed for the production of wood chip material can be controlled electronically. The CT 30-60 is equipped with modern NoStress and noblock and a
