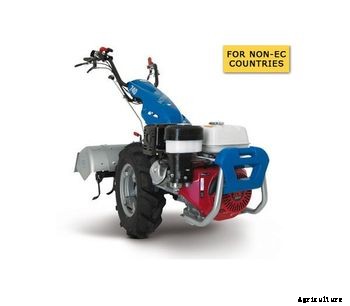

Reversible and multifunctional two-wheel tractor | power up to 11.7 hp | tilling width up to 80 cm. The versatility of BCS two-wheel tractors Action series allows to fulfil all requirements pertaining to soil working, gardens' care, greens maintenance, inter-row mowing in vineyards and orchards or in uncultivated areas and during winter use, all year round. Thanks to their handling and ease of use, the BCS two-wheel tractors Action series are well performing any type of use and can be used by a vast range of users: from hobby to professional farmers, and from individuals to the greenery caretaker.
Technical Features
No. of speeds (FWD+REV): 4 + 3 in two-wheel tractor position, 3 + 3 in motor mower position
Quick reverser to change the forwarding direction
Differential: with lock
Dry clutch: with manual control
Independent power take-off: with engagement in oil bath
Independent working brakes: on the two wheels
Handlebar: mounted on silent-blocks, adjustable in height and sideways and reversible
Safety devices: Engine Stop combined with clutch and contrast reverse speed to avoid contemporary action of reverse speed and rotary hoe
Engine
Dimensions and Weights
Width min / max (without attachment):
with wheels 5.0-10: 503 / 575 mm
with wheels 6.5/80-12: 668 / 790 mm
with steel cage wheels Ø cm 49: 450 mm
Weight (without attachment):
with GX390 engine, wheels 5.0-10: 104 kg
with GX390 AE engine, wheels 5.0-10: 104 kg
with XR2100 engine, wheels 5.0-10: 108 kg
with LN100 engine, wheels 5.0-10: 122 kg
with LN100 AE engine, wheels 5.0-10: 130 kg
with KD440 engine, wheels 5.0-10: 120 kg
with KD440 AE engine, wheels 5.0-10: 126 kg
Speeds
Graph of the speeds in km/h(forward and reverse gears) with5.0-10tyres.
Two-wheel tractor version (with rear attachments)
Motor mower version (with front attachments)
Transmission
The power transmission from the engine to the wheels and to the pto is through asolid transmission in oil bath, which provides thebest compromise with benefits, reliability and working life.
The conical self-ventilating dry clutch allows simple maintenance and low operating costs.
Safety
Motor Stop combined with the clutch.
Device to prevent the simultaneous engagement of rotary hoe and reverse speed.
Manoeuvrability
Solid and compact structure to make the two-wheel tractors extremely light and maneuverable on all types of grounds.
Optimal balancing of the machine with both front and rear attachments.
Comfort
Adjustable handlebar in 7 different positions - to fit all types of operator - and sideways to avoid treading the soil worked or to cut on slope.
Handlebar mounted on silent-blocks to dampen vibrations and allow the use of the two-wheel tractors for several hours without straining the operator.
Ergonomics
Easy to locate and operate levers and controls with simple and effortless movements.
Intuitive and well-visible pictograms illustrate the function of all controls to the operator.
Experience
BCS is a leading Company in the sector of agricultural and greens maintenance machines. Born in 1943, it is recognized internationally for the high quality of its production.
