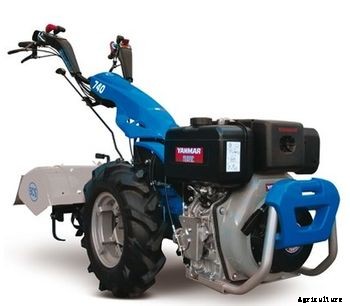

Reversible and multifunctional two-wheel tractor with PowerSafe hydraulic clutch | power up to 11.7 hp | tilling width up to 80 cm.The versatility of BCS two-wheel tractors PowerSafe® allows to fulfil all requirements pertaining to soil working, gardens' care, greens maintenance, inter-row mowing in vineyards and orchards or in uncultivated areas and during winter use, all year round.
Thanks to their handling and ease of use, the BCS ...
Thanks to their handling and ease of use, the BCS two-wheel tractors PowerSafe® are well performing any type of use and can be used by a vast range of users: from hobby to professional farmers, and from individuals to the greenery caretaker.
The PowerSafe® hydraulic clutch, patented and exclusive to the BCS Group, also guarantees maximum reliability, comfort and total safety for the operator.
Technical Features
Gearbox: 3 forward + 3 reverse speeds
Quick reverser to change the forwarding direction
Differential: with lock
PowerSafe® clutch: with multiple discs in oil bath
Independent power take-off: with engagement in oil bath
Independent working brakes: on the two wheels
Parking brake
Handlebar: mounted on silent-blocks, adjustable in height and sideways and reversible
Safety devices: complying with the applicable regulations
Engine
Dimensions and Weights
Width min / max (without attachment):
with wheels 5.0-10: 503 / 575 mm
with wheels 6.5/80-12: 668 / 790 mm
with steel cage wheels Ø cm 49: 450 mm
Weight (without attachment):
with GX390 engine, wheels 5.0-10: 112 kg
with GX390 AE engine, wheels 5.0-10: 116 kg
with XR2100 engine, wheels 5.0-10: 112 kg
with LN100 engine, wheels 5.0-10: 132 kg
with LN100 AE engine, wheels 5.0-10: 140 kg
Speeds
Graph of the speeds in km/h(forward and reverse gears) with5.0-10tyres.
Two-wheel tractor version (with rear attachments)
Motor mower version (with front attachments)
PowerSafe
The PowerSafe® clutch with multiple steel discs in oil bath and directly flanged to the engine, patented and exclusive to the BCS Group, guarantees a number of benefits for the operator, in addition to make two-wheel tractors conforming to the safety regulations EN 709/A4.
Safety
Immediate machine and attachment shutdown if the handlebar is released. However, the engine continues to run.
Dual desmodromic system to prevent work from being resumed accidentally.
Reliability
Maintenance-free hydraulic clutch.
Practically unlimited duration even if stressed with alternating movement attachments or with high inertia.
Performance
No overheating even if stressed for a long time.
No drop in performance at any operating temperature.
Comfort
Gentle and progressive engagement of the clutch lever, as well as minimal force required to keep the safety lever pressed.
Elimination of preliminary action for engine start-up.
Warranty
Extended to 5 years on the entire PowerSafe® clutch unit.
