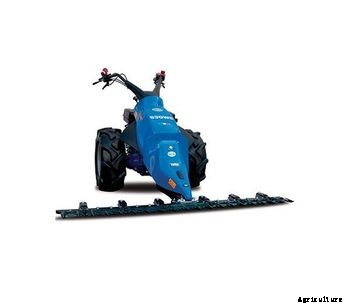

Motor mower with mechanical transmission and PowerSafe® hydraulic clutch | hydromechanical quick reverser | steering clutch/brake assembly on the two wheels | power up to 10.7 hp | cutting width up to 210 cm.
The versatility of BCS motor mowers PowerSafe®...
The versatility of BCS motor mowers PowerSafe® allows our customers to fulfil any requirement related to mowing fodder, weeding between rows of vineyards and orchards, maintenance of public greenery and private gardens, cleaning uncultivated areasand during winter use, all year round.
Thanks to specific devices such as:
hydromechanical quick reverserEasyDrive®
steering clutch/brake assembly on the two wheels
reduction unit in oil bath
that facilitate maneuverability also on very steep slopes,the 630 WS EasyDrive®PowerSafe® is a super- professional motor mowerintended for professional farmers and greenery caretaker.
ThePowerSafe® hydraulic clutch, patented and exclusive to the BCS Group, also guarantees maximum reliability, comfort and total safety for the operator.
Engine
Technical Features
No. of speeds FWD/REV: 3 + 3
Cast-iron reinforced gearbox
Quick reverser: hydromechanical EasyDrive®
Differential: steering clutches combined with brakes
Reduction units: in oil bath on both wheels
Clutch: PowerSafe®, with multiple discs in oil bath
PTO: independent at 990 rpm with engagement in oil bath
Working brakes: yes, independent on the two wheels
Parking brake: yes, automatic Auto-hold type
Handlebar: mounted on silent-blocks, adjustable in height and sideways
Safety devices: in compliance with the applicable regulations
Graph of the speeds in km/h with 5.0-10 tyres
Dimensions
Maximum width (without attachment):
with wheels 5.0-10: 889 mm
with wheels 5.0-10 + Super Bite: 1159 mm
with wheels 21x11.00-8 Terra Tyre: 1060 mm
with wheels 20x8.00-10 Lug Tyre (narrow rim): 730 mm
with wheels 20x8.00-10 Lug Tyre: 889 mm
with wheels 20x8.00-10 Garden: 889 mm
with steel wheels 3x300: 1070 mm
with steel wheels 4x400: 1230 mm
PowerSafe
The exclusive PowerSafe® clutchwith multiple steel discs in oil bath and flanged directly to the engine, provides the operator with a series of tangible advantages:
Reliability
Maintenance-free hydraulic clutch.
Practically unlimited duration even if stressed with alternating movement attachments or with high inertia.
Performance
No overheating even if stressed for a long time.
No drop in performance at any operating temperature.
Comfort
Gentle and progressive engagement of the clutch lever, as well as minimal force required to keep the safety lever pressed.
Elimination of preliminary action for engine start-up.
Safety
Immediate machine and attachment shutdown if the handlebar is released. However, the engine continues to run.
Dual desmodromic system to prevent work from being resumed accidentally.
Warranty
Extended to 5 years on the entire PowerSafe® clutch unit.
EasyDrive
The patentedhydromechanical reverser EasyDrive systemis an innovation whichallows moving the machine forwards and backwardswithout using the engine clutch control, but by simply operating the control on the handlebars.
When operating, theEasyDrive®by-passes the clutch, with the advantage that it is not engaged and disengaged for each maneuvers.
This always allows the maximum torque and protection of the transmission, while reducing the maintenance and increasing the lifetime of the machine.
Steering Clutches
This original mechanism independently controls the integral steering clutch-brake mechanisms housed in closed cases on the two wheels, through two levers on the handle bars.
This gives the motor mowers WS excellent stability on steep terrains, meaning:
