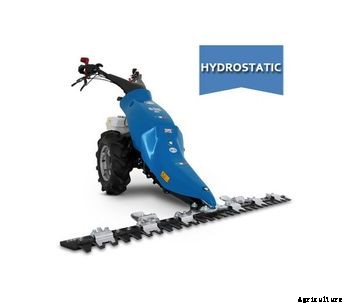

Motor mower with hydrostatic transmission and PowerSafe® hydraulic clutch | power up to 10.7 hp | cutting width up to 210 cm.
The 635 HY PowerSafe® is a motor mower withhyd...
The 635 HY PowerSafe® is a motor mower withhydrostatic forward motion transmission that can be continuously adjusted with 2-speed ranges(slow/fast).
With one lever only on the handlebar, the operator can continuously vary the speed and direction of the machine:this means an unlimited amount of gears are available for all operating requirements.
The lever control ensureshigh operation comfortespecially duringhaymaking, greens maintenance, snow removal and typical municipality use, which involves many direction changes.
Thanks to their handling and ease of use, the hydrostatic motor mower 635 HY PowerSafe® iswell performing any type of use and can be used by a vast range of users: from hobby to professional farmers, and from individuals to the greenery caretaker.
ThePowerSafe® hydraulic clutch, patented and exclusive to the BCS Group, also guarantees maximum reliability, comfort and total safety for the operator.
Engine
Technical Features
Hydrostatic transmission:with 2-speed ranges (slow/fast) in both forward and reverse drive
Forwarding control:by an EasyGrip lever or an EasyRider rotating knob
Clutch:PowerSafe®, with multiple discs in oil bath
Differential with lock:yes
PTO:independent at 990 rpm with engagement in oil bath
Working brakes:yes, independent on the two wheels
Parking brake:yes
Handlebar:mounted on silent-blocks, adjustable in height and sideways
Safety devices:in compliance with the applicable regulations
Graph of the speedsin km/h with 5.0-10 tyres
Hydrostatic Transmission
The compact hydrostatic pump-engine unit is made of light alloy so thatthe machine can be easily manoeuvredand positioned on the gearbox.
Characterised by a high pressure circuit which is separate from the one of the PowerSafe® clutch, the machine is fitted with anaxial-centrifugal fan to cool the hydrostatic unit.
Direction Control
EasyGrip: The 'EasyGrip' lever control guarantees ahigh operating comfort especially for those operations requiring frequent direction reverse, such as greens maintenance and typical uses in municipalities.
EasyRider: The 'EasyRider' direction control by rotating knob, motorcyclist type, allows the operator to control the direction holding the handlebar with the right hand. This allows tobetter control the unit in deep slopes, such as cutting on hilly grounds. The knob rotates on ball bearings to reduce driving friction.
For both direction controls, a notch sector allows the operator to easily and repeatedly fix the position of the lever or of the knob. A central area without notches lets the lever or the knob to be positioned as desired, so that the machine can operate at a very slow speed.
Dimensions and Weights
Width min / max (without attachment):
with wheels 5.0-10: 503 / 575 mm
with wheels 5.0-10 + Super bite: 773 / 845 mm
with wheels 21x11.00-8 Terra Tyre: 870 mm
Weight (without attachment):
with GX340 V engine, wheels 5.0-10: 137 kg
with GX340 V Alps engine, wheels 5.0-10: 137 kg
with KD350 V engine, wheels 5.0-10: 135 kg
with L100Vengine, wheels 5.0-10: 155 kg
PowerSafe
The exclusive PowerSafe® clutchwith multiple steel discs in oil bath and flanged directly to the engine, provides the operator with a series of tangible advantages:
Reliability
Maintenance-free hydraulic clutch.
Practically unlimited duration even if stressed with alternating movement attachments or with high inertia.
Performance
No overheating even if stressed for a long time.
No drop in performance at any operating temperature.
Comfort
Gentle and progressive engagement of the clutch lever, as well as minimal force required to keep the safety lever pressed.
Elimination of preliminary action for engine start-up.
Safety
Immediate machine and attachment shutdown if the handlebar is released. However, the engine continues to run.
Dual desmodromic system to prevent work from being resumed accidentally.
Warranty
Extended to 5 years on the entire PowerSafe® clutch unit.
