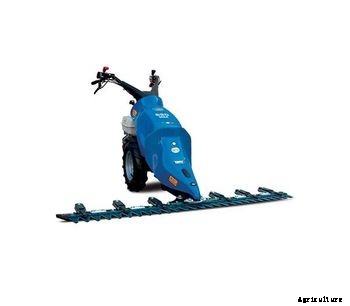

The BCS 620 Max mowers are equipped with a petrol engine8,4 hp Honda GX270available also inAlpsversion (recommended for steeply sloping uses) and a7,5 hp Kohler KD350 diesel engine.
The gearbox has four forward speeds, three reverse...
The gearbox has four forward speeds, three reverse speeds and a quick reverser.
The bars available, from 100 to 180 cm wide, are in the “Laser”, “Laser Elasto”, with middle cut fingers and Duplex versions.
The transmissions, which support and drive the cutter bars, are available in a dry type requiring the usual maintenance and maintenance-free 'Torx' models in oil bath.
Technical Features
No. of speeds FWD/REV: 4 + 3
Quick reverser:yes
Clutch:self-ventilating conic clutch
Differential with lock:no
PTO:independent at 990 rpm with engagement in oil bath
Parking brake
Driving positionwith height and side adjustable handlebar mounted on shock absorbers to reduce vibrations
Weightwith GX270 engine, 4.00-8 wheels, oil bath transmission and cm. 115 cutter bar: kg. 115
Graph of the speedsin km/h with 4.00-8 tyres
Engine
Dimensions
Width min / max (without attachment):
with wheels 4.00-8: 435 mm
with wheels 4.00-8 + Super Bite: 705 mm
with wheels 16x6.50-8: 565 mm
Technical Features
No. of speeds FWD/REV: 4 + 3
Quick reverser:yes
Clutch:self-ventilating conic clutch
Differential with lock:no
PTO:independent at 990 rpm with engagement in oil bath
Parking brake
Driving positionwith height and side adjustable handlebar mounted on shock absorbers to reduce vibrations
Weightwith GX270 engine, 4.00-8 wheels, oil bath transmission and cm. 115 cutter bar: kg. 115
