Welcome to Modern Agriculture!

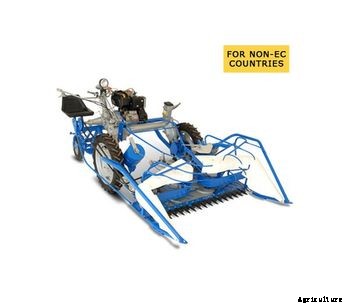

The success of BCS mower comes from a brilliant intuition that made this machine versatile for other uses as well. 622 combined with a reaper-binder attachment becomes a true harvester for corn, sesame, lavender, officinal herbs, common reeds and any other crop requiring mowing and tying in heaps or bundles.
622 reaper-binder has a4 forward speed and 1 reverse speed gearbox; it is operated by asingle-cylinder diesel engine from Lombardini, type 3LD450, 10 HP.
Thedifferential with lockandindependent control brakes on the two wheelspermit the best control of the machine on any type of ground.
There are two versions of reaper-binder available:
Thecutting height is 140 cmand the cutter bar is available with standard fingers (finger clearance: 76 cm), low cut fingers (finger clearance: 38 mm) or mulching fingers to prevent clogging, in particular for common reeds.
Theforksover the cutter bar move constantly and continuously, to convey cut crop towards the tying attachment.
Thebinderis a patent by BCS and is true technical exploit: tying of cut product and wire cutting can be adjusted once the heap is ready. The diameter of the latter can be adjusted in three positions using a suitable spring.
The standard reaper-binderis directly applied onto the transmission unit of 622.
The ground clearance and the overall dimensions are the same in this version, that can be used for crops with ground clearance not higher than 70/80 cm.
Available with tying at 19 or 28 cm of height.
Thespecial reaper-binderuses a special chassis where the transmission assembly of 622 is integrated.
This chassis is used to raise the structure of the complete machine; in this way, crops with ground clearance higher than 80 cm can easily flow under the axle after being cut.
Available with tying at 19 or 28 cm of height.
To work in a comfortable position while being seated, aspecial single-wheel sulky with padded seatwas developed, to be fitted on the axle of 622.
Different versions: Electric single phase (220 V) or three-phase (380 V). Features Steering wheel cast Guide precision blade brass, up and down in series Rubber cover without glue - Easily replaceable Carriage O
The model chipper 20-40 CHIPPER ENERGY is one of those chipper machines designed by Gandini mechanics to service the forestry sector, as it is capable of producing high quality wood chips used in the energy sector. The design of the chipper CHIPPER ENERGY 23-42 was based on a system of cutting blades on the drum, while all the operations that can be performed for the production of wood chip material can be controlled electronically. The CT 23-42 is equipped with modern NoStress and noblock and a
The model chipper 30-60 CHIPPER ENERGY is one of those chipper machines designed by Gandini mechanics to service the forestry sector, as it is capable of producing high quality wood chips used in the energy sector. The design of the chipper CHIPPER ENERGY 30-60 was based on a system of cutting blades on the drum, while all the operations that can be performed for the production of wood chip material can be controlled electronically. The CT 30-60 is equipped with modern NoStress and noblock and a
The specially designed chipping rotors of the Biber 5 series mean that, depending on the model, the chip length can be accurately adjusted from 0.5 to about 12 cm. The system of stationary feed rollers and the angle of the knives make for energy-saving chopping performance, even at maximum branch diameter. Continuous working is guaranteed by the patented parallel guides between the movable feed rollers and the knife wheel – no risk of the ends of branches getting stuck. Your work is
