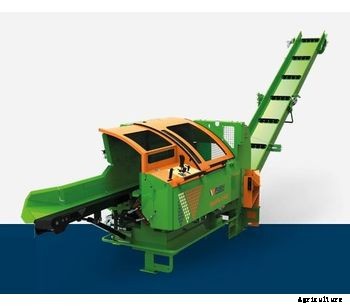

SpaltFix - Model K-415 - Compact Firewood Processor with Professional Chainsaw
The split cutter SpaltFix K-415 with chain saw unit for cooperatives and firewood processors. The hydraulically driven log feed is easily controlled with a 1-hand joystick. The logs are cut to a length of 20-50 cm by a professional chain saw, the automatic timber rocker passes the cut-to-length log on to the pressure piece, which pushes it through the splitting knife. The result: 4, 6, 8 or 12* billets per work cycle. The integrated conveyor belt loads the firewood, or it is cleaned from splinters with an optional screen beforehand.
Products Details
Log diameter 7-41 cm
Billet length 20/25/30/33/35/40/45/50 cm
Cutting system professional chainsaw 53 cm
Hydraulic log feed system with 2-m feeding belt
Hydraulic saw feed system with automated stop ventilation and downholder function
4-way splitting wedge as standard, 6-way, 8-way or 12-way optional* (* limited to D 35/33 cm)
Splitting force 15 t
Stamp advance/return speed max. 32/35 cm/s with Autospeed
OnlyCut function
Oil cooler
Hand-over flap
SpaltFix K-415

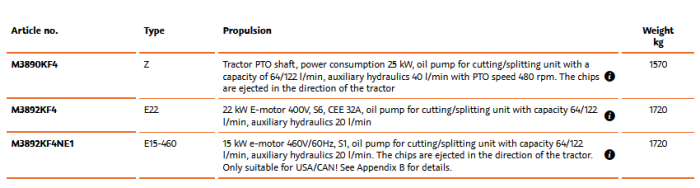

Select the right SpaltFix based on drive type. The 4-m angled conveyor belt (article no. KF4) is standard equipment.
More about Compact Firewood Processor with Professional Chainsaw
