Particularly smooth-runningand sturdywith the ball bearing mounted rocker. The special rocker configurationprevents billets from turning. Useful featuresof these log saw make firewood cutting easier.
Products Details
Petrol engine: Driven by V-belt drive via the 4-stroke petrol engine
Circular saw blade chromium alloy Ø 70 cm (Z1300080)
Cutting diameter max. 24 cm for firewood cutting
Mobile on two solid rubber wheels Ø 30 cm

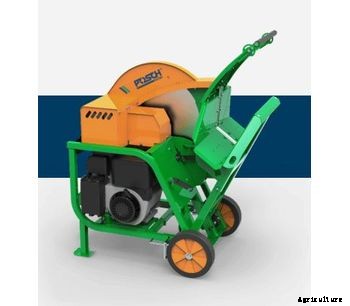

Tilting Saw Petrol Engine
Special Equipment
Make your work routine easier with a series of useful additional pieces of equipment.
A Ready-to-use longitudinal stop assembly on the saw incl. standard rocker conversion kit (for HS model)
N Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs)
W Surcharge for circular saw with a WIDIA circular saw blade Ø 70 cm, 84 teeth (Z1300103), instead of the standard circular saw blade. Benefit: 50% higher cutting performance with hardwood, noise-reducing
D Three-point attachment for tilting saw type WB/WE/WKE
Y Star-delta switching for the drive by way of generating set or soft start for directly operated tilting saw (suitable for 5.5 kW e-motors)
Accessory Equipment
Handy accessory equipment for more power and convenience for wood processing.
F0003779 Tilting extension with roller to cut logs of up to 200 cm, incl. Bracket to store extension, model H/HS
F0003775 Hip roller
F0004402 Downholder (can be activated and deactivated) to retain wood during cutting ( e.g. for multiple cuts or several logs). Retrofitable from April 2019, HS model
F0004128 Adjustable longitudinal stop, retrofittable, model HS: from 20 to 34 cm, model H: from 18 to 34 cm
Z1300080 Circular saw blade Ø 70 cm, 56 teeth, chromium alloy, as standard
Z1300103 WIDIA circular saw blade Ø 70 cm, 84 teeth
F0003835 Transport aid for circular saw with e-motor, model H-HS (standard with Z-/ZE- and B-drive)
