Particularly smooth-runningand sturdywith the ball bearing mounted rocker. The special rocker configurationprevents billets from turning. Useful featuresof these log saw make firewood cutting easier.
Products Details
- Direct drive: Saw blade mounted on the motor shaft with direct transmission of the motor power to the saw blade.
- Circular saw blade chromium alloy Ø 70 cm (Z1300080)
- Cutting diameter max. 24 cm for firewood cutting
- Switch with motor circuit breaker and phase inverter
- Mobile on two solid rubber wheels Ø 30 cm

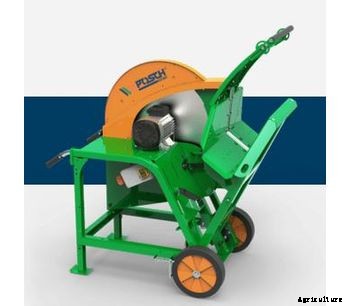

Tilting Saw Direct Drive
Special Equipment
Make your work routine easier with a series of useful additional pieces of equipment.
- A Ready-to-use longitudinal stop assembly on the saw incl. standard rocker conversion kit (for HS model)
- N Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs)
- W Surcharge for circular saw with a WIDIA circular saw blade Ø 70 cm, 84 teeth (Z1300103), instead of the standard circular saw blade. Benefit: 50% higher cutting performance with hardwood, noise-reducing
- D Three-point attachment for tilting saw type WB/WE/WKE
- Y Star-delta switching for the drive by way of generating set or soft start for directly operated tilting saw (suitable for 5.5 kW e-motors)
Accessory Equipment
Handy accessory equipment for more power and convenience for wood processing.
- F0003775 Hip roller
- Z1300080 Circular saw blade Ø 70 cm, 56 teeth, chromium alloy, as standard
- Z1300103 WIDIA circular saw blade Ø 70 cm, 84 teeth
- F0004128 Adjustable longitudinal stop, retrofittable, model HS: from 20 to 34 cm, model H: from 18 to 34 cm
- F0003887 Retrofitting of three-point linkage for WE/WKE for tilting saw model H/HS
- F0004402 Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs). Retrofitable from April 2019, HS model
- F0003773 Ø 10 cm chip extraction connection for tilting saw with E-drive, models H/HS
- F0003534 Hour counter for E-drive machines with 400V, HS model
- F0003835 Transport aid for circular saw with e-motor, model H-HS (standard with Z-/ZE- and B-drive)
- F0003779 Tilting extension with roller to cut logs of up to 200 cm, incl. Bracket to store extension, model H/HS
