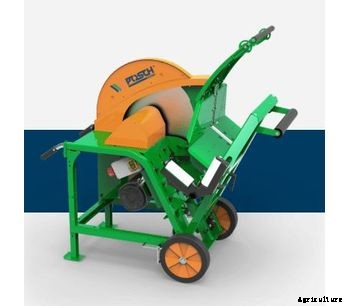

Tilting - Model WKE - Bench Saw with Electric V-Belt Drive
Particularly smooth-running and sturdy with the ball bearing mounted rocker. The special rocker configuration prevents billets from turning. Useful features make firewood cutting easier.
Products Details
V-belt drive: The circular saw blade is fixed on a robust saw shaft. The motor is connected with the saw blade by means of the V-belt and so is overload-protected.
Circular saw blade chromium alloy Ø 70 cm (Z1300080)
Cutting diameter max. 24 cm for firewood cutting
Switch with motor circuit breaker and phase inverter
Mobile on two solid rubber wheels Ø 30 cm
Tilting Saw V-Belt Drive
Special Equipment
Make your work routine easier with a series of useful additional pieces of equipment.
A Ready-to-use longitudinal stop assembly on the saw incl. standard rocker conversion kit (for HS model)
N Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs)
W Surcharge for circular saw with a WIDIA circular saw blade Ø 70 cm, 84 teeth (Z1300103), instead of the standard circular saw blade. Benefit: 50% higher cutting performance with hardwood, noise-reducing
D Three-point attachment for tilting saw type WB/WE/WKE
Y Star-delta switching for the drive by way of generating set or soft start for directly operated tilting saw (suitable for 5.5 kW e-motors)
Accessory Equipment
Handy accessory equipment for more power and convenience for wood processing.
F0003775 Hip roller
Z1300080 Circular saw blade Ø 70 cm, 56 teeth, chromium alloy, as standard
Z1300103 WIDIA circular saw blade Ø 70 cm, 84 teeth
F0004128 Adjustable longitudinal stop, retrofittable, model HS: from 20 to 34 cm, model H: from 18 to 34 cm
F0003887 Retrofitting of three-point linkage for WE/WKE for tilting saw model H/HS
F0004402 Downholder (can be activated and deactivated) to retain wood during cutting (e.g. for multiple cuts or several logs). Retrofitable from April 2019, HS model
F0003773 Ø 10 cm chip extraction connection for tilting saw with E-drive, models H/HS
F0003534 Hour counter for E-drive machines with 400V, HS model
F0003835 Transport aid for circular saw with e-motor, model H-HS (standard with Z-/ZE- and B-drive)
F0003779 Tilting extension with roller to cut logs of up to 200 cm, incl. Bracket to store extension, model H/HS
