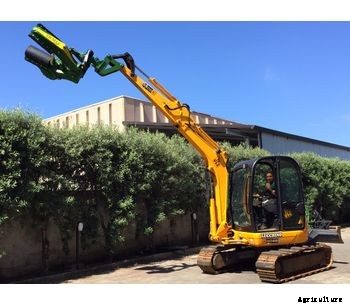

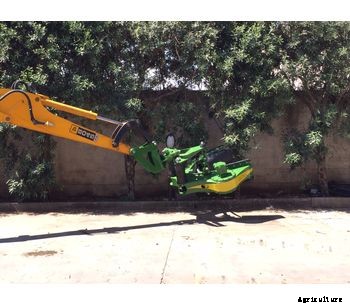

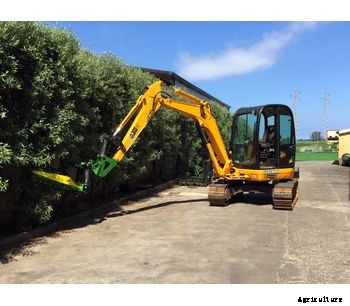

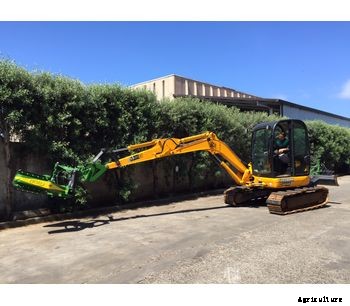

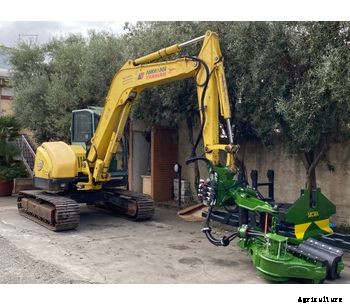

We couple the New generation Vibrating Head on most of the mini excavators with suitable hydraulic characteristics, either wheeled or tracked drive units as far as they guarantee minimum specific hydraulic characteristics. The kit uses the hydraulic circuit of the mini excavator to which we add additional controls in the cabin. The kit cannot be coupled with the reverse umbrella.
Technical Characteristics
- COUPLING: Connection to the excavator’s arm through specific plates and joints
- VIBRATING HEAD: New Generation at high frequencies, self-centring, self-braking. Two vibrating speeds
- MAX PLIER OPENING: 48 cm
- CONTROLS: Drive unit levers with electric switch on the driver’s cabin
- HYDRAULIC CIRCUIT: Open hydraulic circuit composed by vibration pump and electrohydraulic valves actuated by the hydraulic circuit of the drive unit
Size & Weight
- TOTAL LENGTH: 950 mm (head) + 300 mm (connection plate)
- TOTAL HEIGHT : 400 mm
- TOTAL WEIGHT: 560 kg (T212, connection plates and hydraulic circuit)
- VERTICAL BALANCING: 45°
