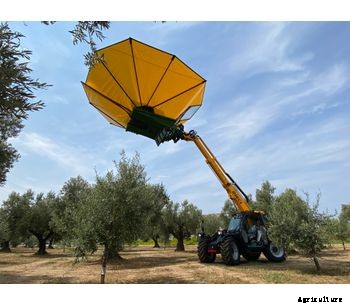

Agri Farmer series is now available with the Sicma’s vibrating head (and reverse umbrella) for the mechanical harvesting of olives, nuts and hanging fruits. Once the harvest is complete, the handler can be coupled with the entire range of accessories offered by the company DIECI (lifting hooks, forks, pliers, excavating and aggregate shovels, winches and baskets). Agri Farmer is a telehanlder that satisfy every lifting and handling requirement, both in small and medium sized farms. Direction and boom are controlled by the new CAN-bus single-lever Joystick, while the 2-speed hydrostatic transmission allows maximum forward travel precision even at full speed...
AGRI FARMER is capable of high fluidity of movemen...
AGRI FARMER is capable of high fluidity of movement and a very high level of precision in small movements, with greater comfort for the operator and lower acoustic emission in the cab. It can be equipped with the new FNR Joystick to precisely and safely handle all the vehicle functions with a simple movement of a hand.
The cab, ROPS-FOPS approved, designed to ensure a high level of comfort, can be equipped with an enhanced air conditioning system which allows perfect air circulation inside the cab. The on-board computer with LCD display, allows the operator to monitor all the vehicle operating parameters.
Technical Characteristics
- ENGINE: Diesel, Kubota V3800-Tief 4 GD IV Final, Turbo Common Rail (3.769 cm3, 4 cylinders, 79,5 kW (107 HP) @ 2200 rpm
- TRANSMISSION: Hydrostatic with variable flow pump. Automatic hydrostatic motor. Elettro-hydraulic inverter
- HYDRAULIC CIRCUIT: Circuit of 140 L. Gear pump at 115 L/min oil flux - max 245 bars
- MAX. LIFTING CAPACITY: 2.800 kg
- MAX. LIFTING HEIGHT: 6.350 mm
- MAX HORIZONTAL OUTREACH: 3.650 mm
- MAX SUPERABLE SLOPE: 40°
- MAX SPEED : 35 km/h
- CASE CAPACITY (IF WITH UMBRELLA): 500 kg
- TOTAL WEIGHT: 6.100 kg
Optional
- Kit vibration: predisposition with catenary, hydraulic and electric circuits. This option is available only if combined with the vibrating head at order
- Vibrating Head New Generation at high frequencies, self-centring and self-braking
- Reverse umbrella (ø 5, 6, 7, 8 or 9 m)
- Air Conditioned
- Umbrella extension bars
