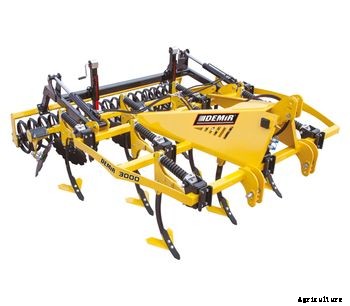

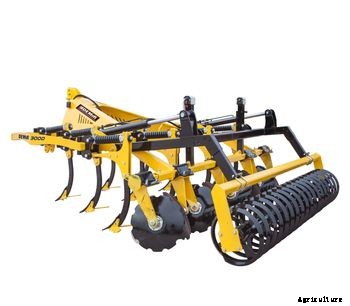

The three row tine cultivator is equipped with non-stop spring security and designed for wide range of working operations from stubble cultivation to deep loosening. It is also characterized by its high versatility. Flexible leg ploughshares allow the soil to be processed at different depths with varying intensity of the soil loosening. The machine processes the soil in the range of 6-35 cm.
The final quality of work is also substantially influenced by the leveling discs after the cultivation. These discs do not only level the soil after cultivation but they also create a soft surface structure. This is due to the optimized tilt of the discs that creates the effect of placing larger clods into the ridges after the cultivation and brings soft crumbled soils up to the surface.
Technical Specifications
Model DMR R3000 DMR R4000
Number of Tine 10 pcs 13 pcs
Working Width 3000 mm 4000 mm
Working Depth 60-350 mm 60-350 mm
Transport Width 3000 mm 3000 mm
Required Power 140-200 hp 180-280 hp
Weight 1700 kg 2300 kg
