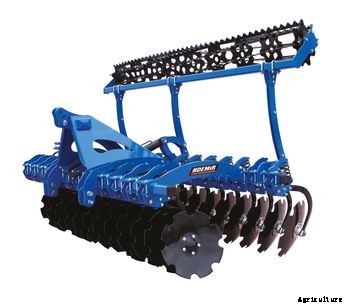

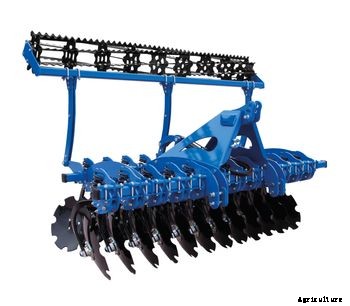

DEMIR - Model DSI - Spring Independent Multi Disc Harrow

•
•

Disc harrow is a compact disc tillage machine. The two rows of offset discs to work the soil are arranged for mixing and breaking of stubble in a single pass. In this tillage type, the disc move is changed with working depth that is in turn changed by operating the hydraulic coupling height on the tractor: this changes the pressure on the disc, the disc angle to the tillage direction, this also enables a more aggressive cultivation of the discs into the soil. Our maintenance free hubs ensures long-lasting performance. Thus, no need to grease. The overall machine is compact and easy to manoeuvre on the field and on the road. The machine is also very convenient in operation. Thanks to a machine this versatile the stubble and harvest residues are thoroughly mixed.

Technical Specifications

Model                          DSI 16            DSI 18              DSI 20           DSI 22            DSI 24            DSI 28             DSI 32

Number of Disc          16 pcs            18 pcs             20 pcs            22 pcs             24 pcs            28 pcs              32 pcs
Disc Diameter            610 mm         610 mm          610 mm        610 mm          610 mm          610 mm           610 mm
Disc Row Distance      250 mm         250 mm          250 mm        250 mm          250 mm          250 mm           250 mm
Working Width           2000mm        2250mm         2500mm       2750mm          3000mm         3500mm          4000 mm
Required Power          55-65 hp       65-75 hp         75-85 hp         85-95 hp         95-110 hp       120-140 hp      145-170 hp
