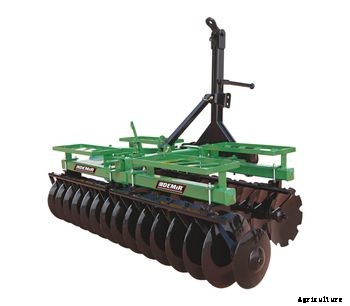

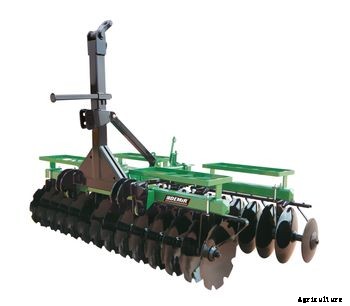

DEMIR - Model DHD - Trailed - Mounted Disc Harrow

•
•

V type trailed and mounted offset disc harrows are a kind of soil cultivation machine which is used to prepare seed bed by breaking the clods after the pulley and mixing the soil. Operations such as dissecting the plant residues and weeds and breaking the duff layer may be performed with V type lowed and loop offset disc harrows. The most significant superiority from secondary soil cultivation machines is being usable within wide humidity limits of the soil.

Technical Specifications

Model                             DHD 24               DHD 28                 DHD 32                  DHD 36
Number of Disc             24 pcs                 28 pcs                  32 pcs                   36 pcs
Working Width              2000mm             2350mm             2700mm                2700mm
Disc Diameter               510mm               510mm                510mm                  510mm
Disc Row Distance        175 mm             175 mm                175 mm                 175 mm
Required Power            50-60 hp             60-70 hp               70-80 hp               80-90 hp
Weight                           700 kg                  775 kg                   850 kg                    925 kg
