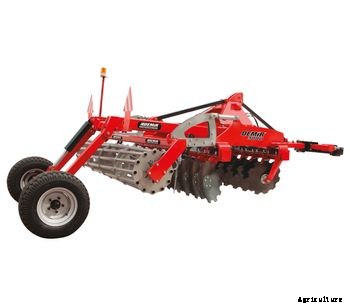

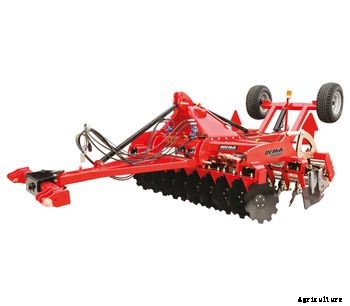

DEMIR - Model T-DGT - Trailed Independent Multi Disc Harrow

DEMIR - Model T-DGT - Trailed Independent Multi Disc Harrow Disc harrow is a compact disc tillage machine. The two rows of offset discs to work the soil are arranged for mixing and breaking of stubble in a single pass. In this tillage type, the disc move is changed with the working depth that is in turn changed by operating the hydraulic coupling height on the tractor: this changes the pressure on the disc, the disc angle to the tillage direction, this also enables a more aggressive cultivation of the discs into the soil. The overall machine is compact and easy to manoeuvre on the field and on the road. The machine is also very convenient in operation. Thanks to a machine this versatile the stubble and harvest residues are thoroughly mixed.

Technical Specifications

Model                             T-DGT 16                      T-DGT 20                       T-DGT 24                       T-DGT 28
Number of Disc               16 pcs                          20 pcs                            24 pcs                           28 pcs
Working Width              2000mm                       2500mm                        3000mm                       3500mm
Disc Diameter                 600mm                        600mm                          600mm                         600mm
Disc Row Distance           250mm                        250mm                          250mm                         250mm
Required Power               65-75hp                       80-100hp                    100-115hp                    110-130hp
Weight                           1850kg                         2150kg                             2350kg                         2500kg
