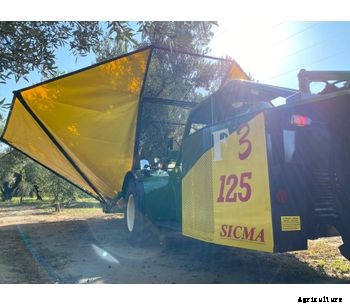

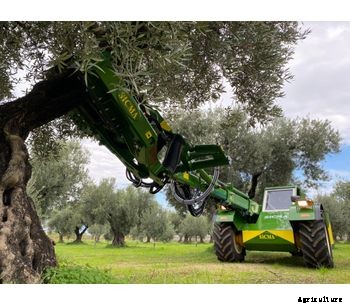

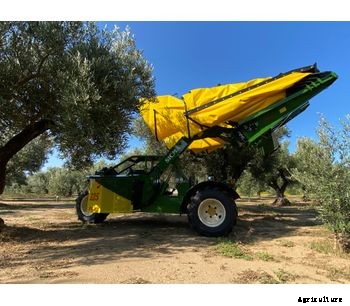

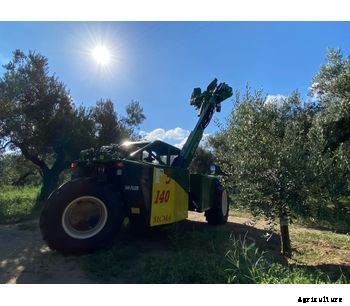

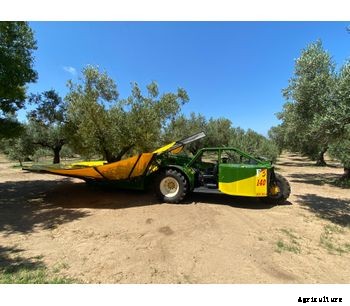

The self-propelled F3 is the Sicma’s top harvester, available with 2 engines, Kubota or IVECO. It is characterized by the independent 3-wheel drive and the rear steering wheel. The F3 harvests indifferently olives, nuts (i.e. walnuts, almonds, pecans, macadamia, etc.), sour cherries and other hanging fruits. It works in different growing conditions, either on flat or sloping grounds, exploiting the power of the engine and the exclusive handling of the 3-wheel system which allows high maneuverability, even in reduced spaces...
The F3 can be equipped with standard, overturning ...
The F3 can be equipped with standard, overturning or telescopic arm with double extension (triplex arm), other than the standard or balancing reverse umbrella, hydraulic lever distributor, electro-hydraulic joystick, rear camera with monitor in the cabin, etc. Once harvest is complete, the drive unit of the F3 can be coupled with different devices, for instance pruning bars for hedging & topping, forks, etc ...................
TECHNICAL CHARACTERISTICS
ENGINE
Diesel, Kubota V3800, Turbo Common Rail, STAGE IIIB (3.770 cm3, 84.8 kW, 4 cylinders)
Diesel, Iveco FPT, N45 Stage IV Final - (4.500 cm3 - 89 kW, 4 cylinders)
CHASSIS
Monoblock in tubulars and sheets. Open cabin and roll-bars
TRANSMISSION
Hydrostatic, independent 3-wheel drive. The rear wheel steers
CONTROLS
Steering wheel, motion pedal and vibration joystick. Service hydraulic lever distributor
VIBRATING HEAD
New Generation at high frequencies, self-centring, self-braking. Two vibrating speeds
PLIER OPENING
65 cm
TIRES
405 x 70 - 20”
Front 440 65 R24” - Rear 440 65 R20”
CASE CAPACITY (IF EQUIPPED WITH UMBRELLA)
400 kg
UMBRELLA DIAMETER
5, 6, 7, 8, or 9 m
Optional
-
- Closure pressure jaw valve
- Electro-hydraulic joystick
- Triplex arm double extension
- Hydraulic balancing reverse umbrella (with cylinders)
- Umbrella bar extensions
