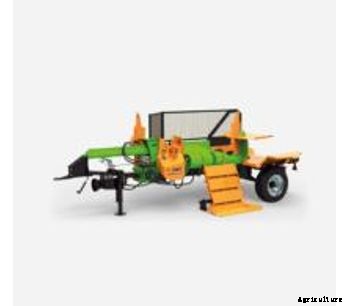

SplitMaster - Model 30 - Longitudinal Chassis Log Splitter
The horizontal splitter with its elongated tractor chassis is suited for locations far away from houses & farms. With a splitting power of 30 t, the horizontal wood splitter handles almost every log and reliably processes large volumes of wood. The log lifting device and the optimum working height ensure ergonomic operation. The new model with a chamfered and longer log support enables a simpler returning/retrieving of the billets for repeated splitting. There is no more convenient and efficient way to process firewood.
Products Details
Punch advance Autospeed as standard
Billet length max. 125 cm
Cylinder stroke 130 cm
Max. billets/work cycle 8 pieces
Splitting knife for 4 pieces as standard (Easy splitting knife optional)
Splitting knife adjustment hydraulic
Splitting stroke adjustable 130-60 cm
Splitting table height 80 cm
Longitudinal chassis
Rope winch manual or radio control optional

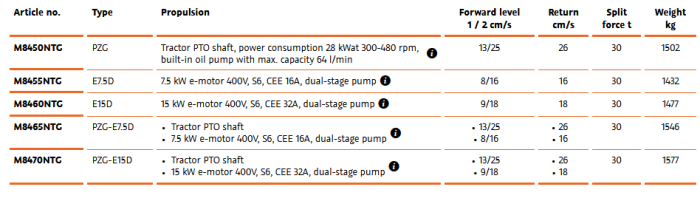

SplitMaster 30 with Longitudinal Chassis
Select the right SplitMaster based on drive type.
More about Longitudinal Chassis Log Splitter
Special Equipment
Make your work routine easier with a series of useful additional pieces of equipment.
Y Surcharge SplitMaster with „Easy“ splitting knife and lumber pick (no 4-way splitting knife)
C Oil cooler recommended for continuous operation (from 4 hours) or for use above 30°C outdoor temperature. Advantage: longer service life of the hydraulic components due to less wear.
X Drawbar eye (low) with top Z-drive, drawbar height 50 cm
L Light bar (for machines with LT tractor chassis)
ST Stationary model without axle for stationary operation
FH Rope winch 750 radio and manually operated, pulling force 500 kg, rope 20 m. Unlimited rope pulling speed
HW Rope winch 750 manually operated, pulling force 500 kg, rope 20 m. Unlimited rope pulling speed
A142 Individual permit / Individual type approval (EBE) for road admission, only possible for deliveries to Austria and Germany!
Splitting Knife
F0003141 Splitting knife „Easy“ with lumber pick
F0003074 2-way splitting knife
F0003075 4-way splitting knife (Ø 0-50 cm), standard
F0003044 6-way splitting knife (Ø 15-50 cm)
F0003069 8-way splitting knife (Ø 15-50 cm)
F0004533 Splitting knife 12-fold (ring Ø 25 cm), for max. Wood length / diameter of 50 cm. Suitable for M84..N / NT. Models (absolutely necessary for 30 t!).
Accessory Equipment
Handy accessory equipment for more power and convenience for wood processing.
Z2000653 Walterscheid W-Line universal shaft
F0004131 Log support extension to split short logs
F0004130 Central lubrication for pressure unit, manual with hand pump
F0004148 Gripper tongs with torsional spring to rope winch, log Ø up to 65 cm. Weight ~7.6 kg
F0004149 Gripper tongs with torsional spring to rope winch, log Ø up to 80 cm. Weight ~8.8 kg
F0002605 Chain for cable puller, 1 m, 2-log hauling hook for 1,000 kg
F0004150 Light unit, attachable
F0001806 Hour counter for machines with PTO drive, includes rpm display
F0002179 Hour counter for machines with E-drive
F0004288 Retrofitting kit safety kit for SplitMaster models N/NS (3-point version, e.g. item no. M845NS) to be used by several people, consisting of three grids, grid bracket, widened timber support as well as safety valve (according to EN 609-1)
F0004289 Retrofitting kit safety kit for SplitMaster models NST/NT (longitudinal chassis version, e.g. item no. M845NST) to be used by several people, consisting of three grids, grid bracket, widened timber support as well as safety valve (according to EN 609-1)
Remote Controls
F0002888 Radio remote control “RC“, option E required
F0002889 Radio-remote control, pedal “RCF“, option E required
F0002885 Radio remote control “RCS“, option E required
F0002886 Cable remote control “CC“, option E required
F0002887 Cable remote control, pedal “CCF“, option E required
E Pre-wired, additionally equipped with electrical control option for installation with a cable or remote control by the customer
F0002884 Voltage converter RC/CC 230V-12V, option E required, only for electric drive
