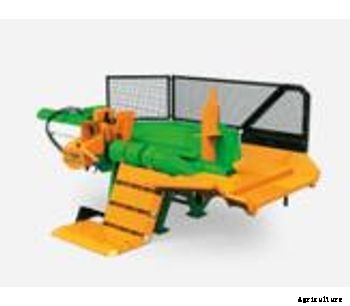

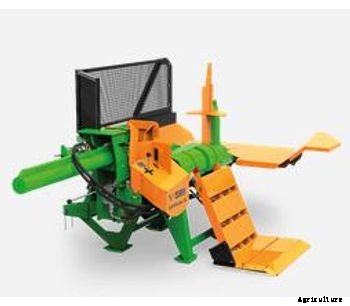

The SplitMaster 26 for large volumes of wood. With a splitting power of 26 t, the horizontal splitter handles almost every log - unbeatable for large volumes of wood and stable performance. The log lifting deviceand the optimum working height enable ergonomic working. The simple return featurefor the billets after the splitting process makes woodwork particularly efficient. The Easy splitting knife is optionally available – there is no more convenient, ergonomic and efficient way to process firewood.
Product Details
Punch advance Autospeed as standard
Billet length max. 125 cm
Cylinder stroke 130 cm
Max. billets/work cycle 8 pieces
Splitting knife for 4 parts as standard (Easy splitting knife optional)
Splitting knife adjustment hydraulic
Splitting stroke adjustable 130-60 cm
Splitting table height 80 cm
Three-point linkage cat. II

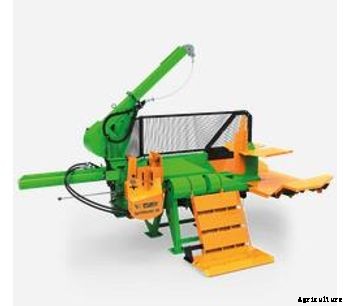

Rope winch with manual or radio control optional
SplitMaster 26

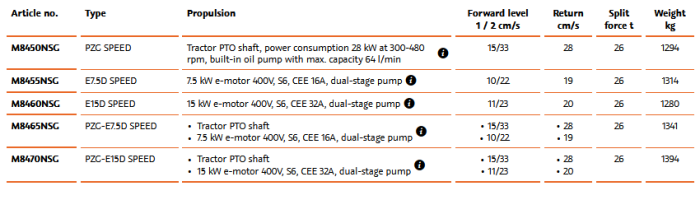

Select the right SplitMaster based on drive type.
More about Horizontal Log Splitter
Special Equipment
Make your work routine easier with a series of useful additional pieces of equipment.
Y Surcharge SplitMaster with „Easy“ splitting knife and lumber pick (no 4-way splitting knife)
C Oil cooler recommended for continuous operation (from 4 hours) or for use above 30°C outdoor temperature. Advantage: longer service life of the hydraulic components due to less wear.
HW Rope winch 750 manually operated, pulling force 750 kg (with longitudinal chassis 500kg pulling force), rope 20 m, unlimited rope pulling speed. Retrofitting upon request (serial no. of machine required)
FH Rope winch 750“, radio and manually operated, pulling force 750 kg (for longitudinal chassis 500 kg pulling force), rope 20 m, unlimited rope pulling speed. Retrofitting upon request (serial no. of machine required)
Splitting Knife
F0003141 Splitting knife „Easy“ with lumber pick
F0003074 2-way splitting knife
F0003075 4-way splitting knife (Ø 0-50 cm), standard
F0003044 6-way splitting knife (Ø 15-50 cm)
F0003069 8-way splitting knife (Ø 15-50 cm)
F0004533 Splitting knife 12-fold (ring Ø 25 cm), for max. Wood length / diameter of 50 cm. Suitable for M84..N / NT. Models (absolutely necessary for 30 t!).
Accessory Equipment
Handy accessory equipment for more power and convenience for wood processing.
Z2000653 Walterscheid W-Line universal shaft
F0004131 Log support extension to split short logs
F0004130 Central lubrication for pressure unit, manual with hand pump
F0004148 Gripper tongs with torsional spring to rope winch, log Ø up to 65 cm. Weight ~7.6 kg
F0004149 Gripper tongs with torsional spring to rope winch, log Ø up to 80 cm. Weight ~8.8 kg
F0002605 Chain for cable puller, 1 m, 2-log hauling hook for 1,000 kg
F0004150 Light unit, attachable
F0001806 Hour counter for machines with PTO drive, includes rpm display
F0002179 Hour counter for machines with E-drive
F0004288 Retrofitting kit safety kit for SplitMaster models N/NS (3-point version, e.g. item no. M845NS) to be used by several people, consisting of three grids, grid bracket, widened timber support as well as safety valve (according to EN 609-1)
F0004289 Retrofitting kit safety kit for SplitMaster models NST/NT (longitudinal chassis version, e.g. item no. M845NST) to be used by several people, consisting of three grids, grid bracket, widened timber support as well as safety valve (according to EN 609-1)
Remote Controls
F0002888 Radio remote control “RC“, option E required
F0002889 Radio-remote control, pedal “RCF“, option E required
F0002885 Radio remote control “RCS“, option E required
F0002886 Cable remote control “CC“, option E required
F0002887 Cable remote control, pedal “CCF“, option E required
E Pre-wired, additionally equipped with electrical control option for installation with a cable or remote control by the customer
F0002884 Voltage converter RC/CC 230V-12V, option E required, only for electric drive
