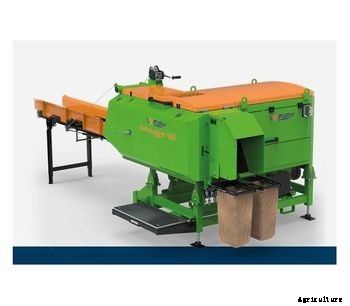

The AutoLogger 420 recycles wood, trunks or logs that are ofpoor initial quality and turns them intoperfect firewood and kindling. The splitter is fed via the buffer conveyor at a height of 90 cm. The wood is drawn in and thesplitting process takes place automatically. Astandard operator platform allows the splitting process to be monitored.
The logs produced can be transported away via a conveyor belt or sorted directly into net bags using the packaging chute.
Thefeet of the AutoLoggers can beadjusted in height to compensate for uneven floors. The splitting machine can be transported via theforklift support (no three-point suspension!).
Valid for initial equipment, incl. assembly.
The log charging table consists of alongitudinal conveyorto push the logs forward and can be upgraded with across conveyorfor log storage and as a buffer. The hydraulic drive is always provided by the SpaltFix firewood processor. The longitudinal conveyor is available as a chain or roller conveyor. The cross conveyor is suitable for quantities up to 5 m³ or 1.5t/m.
Choose from two transportable feeding systems: A longitudinal chain conveyor with built-in log lifter. A longitudinal chain conveyor with built-in cross conveyor. Transportable Conveying System Depending on log length, you can choose various versions. The hydraulic drive is provided by the Sp
The powerful and durable log splitter convinces with the increased splitting power and the splitting knife longer by 30%. That ensures the effortless occasional splitting of larger log diameters up to 40 cm. The Spaltaxt 10 is available in many drive variants and convinces with the unique timber retaining tip which easily and safely fixes even narrow logs or logs cut at an angle before every splitting process.
The conveyor belts that can be used in addition to the POSCH SpaltFix models is swivelling and height-adjustable. The belt inclination can be mechanically adjusted in steps or hydraulically without steps. Products Details Ejection height 2.5 – 5.0 mBelt width 55 cmBelt construction: one-part rubber beltPneumatic-tyre wheels &Os
