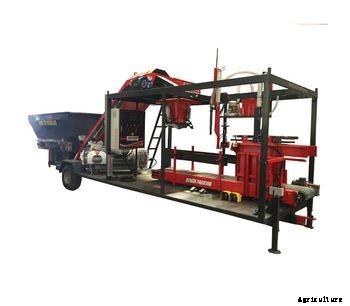

Best way to retain product freshness and preserve quality by packing harvested materials in a range of 25-50 kg bags and also other industrial products such as manure, fertilizer, bolt etc. Our machines not only provide a significant contribution in the feeding animals by preserving materials’ longtime freshness and productivity to the livestock sector but also decrease workload of industrial sectors. Machine has integrated bunker, conveyor and packing unit. You can use the closing with two system. System 1 has vacuum + press + hot sealing. System 2 has vacuum + clipping + sewing. Capacities can change up to materials to pack, target weight and closing system.
Advantages
3 in 1 mobile concept (bunker + conveyor + packing unit) is economic and best solution.
Entegrated loading bunker for direct loading from trailers, trucks, loaders and doesn’t require too much effort.
Entegrated vertical conveyor band provides direct transfer of materials from the bunker to the intaker unit as synchronised working with motor drivers.
Mobile main chasis with optimum dimension of complete set allows easy international freight in container for seaway.
Accurate and fast weighing.
Weighing and filling unit with movement sensor provides slowly and regular filling the materials and perceive the bags and move the bag holders, save from time.
Strong press unit brings the packaged material’s smooth appearance, easy packing save from space.
Strong air suction ability with vacuum unit, absorb the air inside the bag.
Any kind of closing with : Hot sealing, sewing, clipping up to user demand can be entegrated.
All system is operated by the electronic control panel or automation PLC.
Air compressor supplies optimum air amount for all related units.
Mechanical lift jack prevents any damage by stabilizing the machine.
Specifications
Back Bunker
Back Bunker
Materials can be load into the bunker by using tractor without any necessary of other heavy equipments. Folding sidewalls up to the road and working position. Synchronize working with machine. Automatic control and speed adjustable.
Vertical Conveyor
Vertical Conveyor
Direct transfer of materials from back bunker to top bunker. Synchronize working with back bunker and top bunker. Fast material circulation. Chain or rubber system options. Automatic control and adjustable conveyor speed.
Top Bunker
Top Bunker
Provide regular feeding and and filling of material. Prevent blockages and bag damages. Accurate and sensitive weighing with 3 pieces loadcell. Synchronize working with back bunker and vertical conveyor.
Filling Unit
Filling Unit
Provides filling slowly the materials and minimizing the bag damage. Filling diameter is 28 – 32 cm. When the bag is ready for filling bag holders close and filling start automatically by touching the sensor. When the bag reached target weight bag holders open automatically.
Bag Conveyor
Bag Conveyor
Provide smoothly transferring the bag to the vacuum, sewing and pressing unit. Easy transfer without any human power. Control by foot pedal.
Vacuum Unit
Vacuum Unit
Thanks to vacuum pipe integrated to the the machine, materials remain as fresh as the first day of packing. If no need the vacuum, vacuum options can close easily by touch screen.
Press Unit
Press Unit
Provide more product with less space. Minimum 300 – 350 kg pressure. Well shaped and tight bags. Easy stock. Adjustable press time.
Hot Sealing Unit
Hot Sealing Unit
Provide strong and safe sealing. Easy use with foot pedal. 3 line resistant. Adjustable heating and timing.
Clipping Unit
Clipping Unit
Tight clipping by pneumatic system. Easy and fast operation. Optimum result for big capacities.
Sewing Unit
Sewing Unit
Bag sewing in 4 – 7 seconds. Daily 4000 – 5000 bags sewing capacity. Comfortable and easy use with balancer. Manuel or automatic sewing
Automation PLC
Automation PLC
Easy use. Control and interfere all units. Remote control system. Multi language options.
