2H Plastic Components for Air Humidifying and Cooling

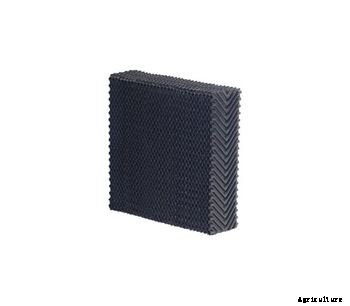

Humipacking

Our components for evaporative coolers feature:

• Excellent cooling capacity
  The special surface properties of the polypropylene compound in combination with the element‘s geometry ensure a very good cooling capacity.
• Easy to clean / long service life
  The use of welded, highly resistant polymer sheets (PP) allows the humidifying cooler to be cleaned without difficulty and without damaging the elements. In addition, the elements owe their durable mechanical strength to thermal welding of the sheets. The use of polymer material in combination with thermal welding guarantees a long service life.
• Impermeable to light
  The element‘s geometry blocks out light.
• Low pressure loss
  HUMIPACKING elements are characterized by low pressure loss.
• UV resistance
  The use of additives ensures outstanding resistance to UV light

Technical Data

• Type: KFP 158
• Material:
• Polypropylene (PP)
• UV resistant
• Specific surface area (m²/m³): ~ 320
• Max. height (mm): 2.700
• Max. width (mm): 600
• Depth (mm): 150
• Typical Applications:
• Cooling of poultry and pig farms
• Cooling of greenhouses
• Cooling of warehouses
• Domestic comfort cooling
• Air humidifying

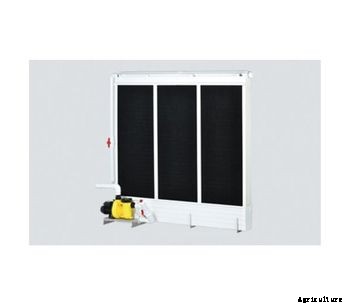

Agridek

We offer a complete system in addition to the individual HUMIPACKING® fills: the AGRIdek climate system.

The main component within this system is the HUMIPACKING® fill as a heat exchange medium. A sprinkler unit for the distribution of water across the pad and one or more pumps for the circulation of the water complete the system.

Quick cooling with low energy input

Within the system, air is brought into close contact with water; this evaporates and, in doing so, draws heat energy from the air. Excellent cooling power is generated thanks to the very large evaporation surface in the HUMIPACKING® fill. The deflector creates an ideal distribution of the water. The result: immediate cooling with low energy input.

Easy self-installation

The system is easy to fit. It is assembled using plug-and-click connections and is glued at the end. All functional parts are supplied. For the construction, a wooden frame is required which is mounted in the air intake section of the barn wall. The AGRIdek system is attached to this frame using U profiles.

With the exception of connections to the fresh water and electricity supply, no additional external power supply is required.

Long operating life

The AGRIdek system is particularly economical thanks to its low energy consumption and long operating life. The components are made of PVC, PP and stainless steel and are non-corrosive and resistant to most chemicals. Even hard water does not damage the equipment.The pumps are maintenance-free. A pump filter prevents any possible contamination of the water.

Advantages

• Simple:
  Simple fitting, low weight, simple operation, quick cleaning – generally with water
• Durable:
  High corrosion and erosion resistance. Strong chemical and UV resistance suitable for hard water
• Highly economical
  High cooling and sprinkling power. Low operating costs
• Environmentally friendly
  as it is free of halogens and heavy metals
