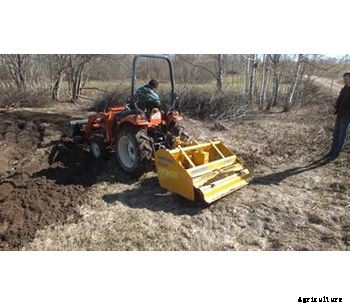

Low, heavy duty and compact spading machines ideal to be used with light tractors.
Product Details
STANDARD:
3-POINT HITCH CAT. I -II
DIRECT TOOTHED GEARING (M8,2 HELICAL). WHEN USING SPADERS WITH A MODERN TRACTOR EQUIPPED QITH A WODE RANGE OF FORWARD RUNNING AND P.d.F. SPEEDES, THE GEARBOX BECAMES IMPRACTICAL, GIVING INCREASE IN COST WEIGHT ASD CONSUMPION. PdF. 540 = 167 RpM PdF.750 = 232 RpM
PROTECTED PTO SHAFT WITH CLUTH
PRELUBRIFICATED SEALED BEARINGS WITHOUT MAINTENANCE
SLIDE ADJUST DEPTH '
ADJUSTABLE HOOD
ADJUSTABLE SPILLWAY
BULKHEAD SIDE LAND FOR CONTAINMENT
FREE OPTION:
HOOD COVER WITH SPIKES
FATLUBRIFICATED BEARING OF CONNETING RODS
THIN SLIDES (10cm - 4 inc)
ALL SPADING SELVATICI, HAVE ADJUSTABLE HOOD WITH LEVERER TOUCH AND ACCIDENT PREVENTION AND CONTAIMENT MOUNDING SOIL IN ACCORDANCE WITH CURRENT STANDARD UNI 10634 ISO11684
Technical Data
Optional
LEVER-SHIFT 3-SPEED GEARBOX. (M8,2 HELICAL(SELVATICI PATENDED)) +60Kg +132Lbs PdF. 540: I 145 II 167 III 205 RpM
