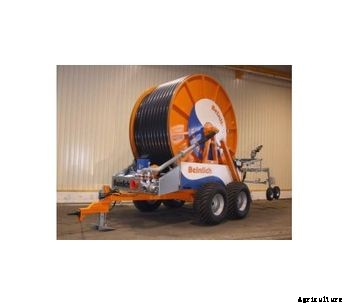

The Monsun series has always been leading in terms of quality and innovation. From 1982, the first Ø 110 mm – 500 m PE-pipes, the double-axle chassis and the electronic retraction control were introduced with Monsun. Since then, Monsun has conquered the market for large-type machinery and has developed to be a forerunner establishing benchmarks in the irrigation industry. For the season of 2008, the new Super range again sets milestones in terms of pipe dimensions. The new Ø 135 mm pipe allows for irrigation outputs of 120 m³/h and more. Pressure requirements can be significantly decreased and irrigation areas increased by far.
Basic Equipment
Robust V-frame with front jack and attachment for tractor bar
Portal axles with 4-fold tyres 11.5 – 15, variable track adjustment 1.80 – 2.25 m
From Monsun 3500 Super optionally available:
2 axles with 4-fold tyres 12.5 – 18 or
3 axles with 6-fold tyres 11.5 - 15
Hydraulic trolley lifting device with manual pump or control valve
Mechanical rear jacks
Robust drum, smooth interior
Drive via
BEINLICH freewheel turbine, front-mounted
BEINLICH oil bath angular drive, V-belt reduction
frontal pto shaft connection
Drive via outer drum wheel on both sides
Drum freewheel brake and backstop
Electronic 2 KR type regulation with solar panel and 12V battery in water-tight, lockable cabinet
Underpressure and overpressure shut-off, slowly closing via gate valve control
Mechanical end and safety shut-off
Punkt blauMachine tubing 4“, galvanized
Galvanized storage tray at front
Special PE-pipe in EGEPLAST quality, lustre finish
Spindel shafts- Winding device
Mechanical guiding arm for PE-pipe positioning
3-wheel gun trolley type 100, track adjustable between 1.50 m – 2.25 m incl. ground anchor and 1 weight block (for drive-through machine)
Trolley tubing galvanized
Sime rain-gun with nozzle set
Ranger for PE-pipe Ø 100 - 125 mm, nozzles 20 – 34 mm
Explorer for PE-pipe Ø 140 mm
Flat hose 6.5 m Ø 102 mm
Riser with elastic steel connection clamp for installation of 3“ water meter or liquid manure feed
