Speaking of highly productive, you’ll be amazed at how much area you can spray with this drone! There are three important parts that you should consider when buying a large spraying drone: Flight Time: easily said, the longer the drone can fly, the more you ground you can spray! This drone flies for up to 20 minutes! Although that might not seem like a long time, it is one of the longest flight times for any spraying drone on the market! Spray tank capacity: battery technology isn’t capable of handling hundreds of gallons (yet), so we find the perfect balance between productivity and ease of use. With just under 4 gallons (15L), spraying drones are an ideal match for replacing backpack sprayers, spot-spraythis aircraft, we’ve achieved a large swath of (30-35 ft / 9.1-10.6m)! That means for every 30-35 foot of field, the aircraft makes just one pass!
Features:
System
- Tested, Ready to Fly (RTF) System
- GPS, fully autonomous Commercial Autopilot
- Terrain Sensing Module
- Automatic Pump Control
- Flow Rate / Level Sensor
- Ground Station for flight planning
- Long-Range Remote Control with Spoken Alerts
- Telemetry Communications Kit
- Manufacturer’s Limited Warranty*
Design
- Carbon Fiber frame with Aerospace Aluminum
- Modular design for easy maintenance/repairs
- Quick-folding Motor Arms
- Double and triple strength stress tested
- ISO 9001 Factory Certification
- ISO 14001 Factory Certification
Safety
- Automatic or User-activated Return to Home (RTH)
- Battery Powered – no spark / no fuel to transport
- Low Battery Alerts and RTH
- Lost Communications RTH
- Low Spray/Chemical RTH
- Motor Arming Procedure (ground safety)
- Emergency Motor Off feature
- 6 or 8 rotor Failsafe (Motor Loss Protection)
- Full Blackbox flight recorder and on-board diagnostics engine
- Safety Folding Propellers
- Double and triple avionic redundancy (optional)
- High-Bright Status LED
- HSE Professional Flight Training (recommended)
Specifications:

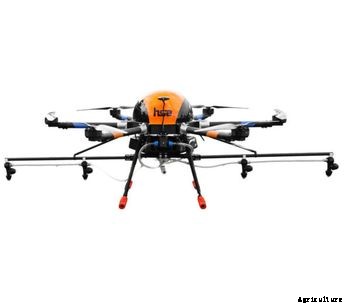

MODEL M6A PRO (formerly the AG-V6A+ 15L)
- Configuration – 6-rotor (VTOL)
- Flight Time (empty) – 50-60 min
- Flight Time (payload) – 15-20 min
- Max Fly Speed – 22 mph (10 m/s)
- Wind Rating (stable) – 27 mph (12 m/s)
- Frame Wheelbase – 64 inches (1630 mm)
- Maximum Width – 94 inches (2388 mm)
- Weight (without batteries) – 25.5 lbs (11.6 kg)
- Useable Payload (after batteries) – 3.96 gal (15 L)
- Max Takeoff Weight (MTOW) – 76.27 lbs (34.6 kg)
MISSION CAPABILITIES
- Typical Coverage Rates – 28–36 ac/hr (11–15 ha/hr)
- Optimal Spray Height (above crops) – 9-12 ft (3-4 m)
- Typical Spray Swath (adjustable) – 30-35 ft (9.1-10.6 m)
- Optimal Spraying Speed – 9-14 mph (4-6 m/s)
- Nozzle Quantity (adjustable) – 6
- Standard Spray Nozzle(s) (selectable) Lechler – TR 80-005
- GPS Accuracy Horizontal – ±1.0m
- Vertical – ±0.5m
- Max Thrust Ratio – 2.33 (takeoff @ 34.6kg)
