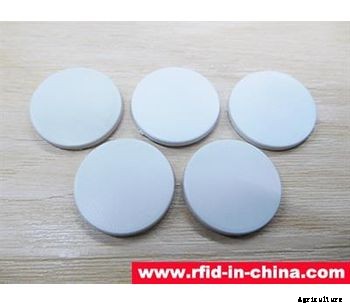

ABS RFID Disc tags are available in different sizes: diameters 13/18/20/22/25/30 and 50 mm, with a thickness of 3mm. And the small footprints allow the tags to support the physical conditions in harsh physical conditions, including resistance against abrasion and impact, etc. And it offers a read range from 5cm to 30cm according to different DAILY RFID readers. Thus, the RFID clear disc is easily integrated into many RFID projects, such as asset tracking and inventory control, logistics and anti-counterfeiting, etc.
Specifications
- Type: Contactless R/O or R/W
- Operating Frequency: LF(125KHz) or HF (13.56MHz)
- IC Available at 125KHz: EM4102, EM4100, EM4001, TK4100, GK4100
- IC Available at 13.56MHz:
- I-CODE (ISO 15693-3), Mifare® Ultralight (ISO 14443A), Mifare®1K (ISO 14443A), Mifare®4K (ISO 14443A), Tag-it™ HF-I (ISO 15693-3), others upon request
- Size: Dia.13/18/20/22/25/30/50 mm, thickness: 3mm
- Reading Distance: 5cm ~ 30cm (Reader Dependant)
- Material: PVC / PET
- Operating Temperature: -40º C to +80º C
- Storage Temperature: -40º C to +100º C
Competitive Advantage
- Waterproof IP 68
- Dia.13/18/20/22/25/30mm
- 100, 000 times reading & writing
- Excellent read/write performance on non-metal surface
- Exceptional temperature and harsh environmental performance
