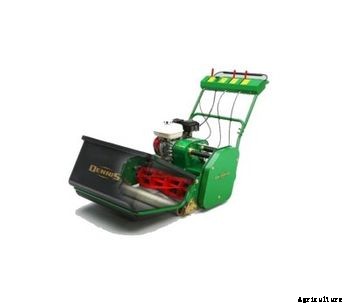

Strong, reliable big cylinder technology dedicated mowers for ornamental and sports turf with large capacity box and heavy duty drive system. Available as 22” (56cm) and 27” (68cm).
Features and Benefits
22' (560mm) or 27' (680mm) cutting width
Low maintenance
Trailer seat option
Strong modular construction to withstand the toughest contracts
Lift over framework for rotproof grassbox reduces storage space and makes transport on trailers easy
Low vibration handlebars
Easy start engine incorporating a flywheel for smooth running
Quality steel geared differential in roller with labyrinth seal to protect from dirt
Long life bearings, bushes and cast iron pulleys throughout giving reliable operation
Excellent sight lines of front roller from operators position
The G560 and G680 are easy and comfortable to operate. The handlebar console houses the controls - throttle, park brake, switches and cutter clutch. Only the forward drive handle needs to be held in by the operator. This reduces operator fatigue and with the built in electrical interlocks makes the machine ultra safe to use.
The handlebar design makes manoeuvring easy and the wide adjustment makes it comfortable for all heights.
High quality Sheffield steel cylinder and bottom blade. Cylinder is 5 bladed with long life greasable bearings. Adjustment of bottom blade to cylinder easy and positive with single spanner.
Large diameter front roller with adjustable scraper for precise height of cut control. Easy to adjust on both sides of machine with single spanner.
