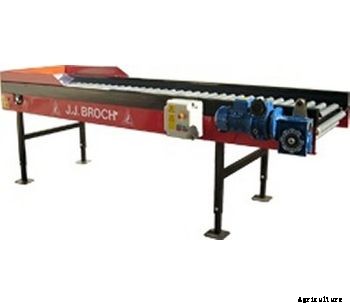

Used as an inspection table to remove scrap, 3rd grade bulbs, stones, soil at magazine reception from the fiel before drying and storing.
Specification
- Width (cm) 150
- Length (cm) 353
- Heigh (cm) 183
- Rollers width (cm) 67
- Number of rollers 33
- Power (CV) 1
- Weight (kg) 350
- Performance (kg/h) 8000
Details
- The polyethylene sheet feed the roller conveyor gently without damage the bulbs.
- The rollers are driven by an Electrical Motor (1 HP) with variable speed to adapt it at garlic bulb conditions from the field.
- The legs can be adjusted for working levelled or with slope. The roller conveyor can unload in big boxes or directly to the next tool (brusher, sorter, etc...).
- The long length and the 33 rollers ensure the removal of peelings, soil, etc... With space available for up to 5 inspection people.
- A effective working width of 670 mm ensure a high volume flow of garlic bulbs up to 8 Tm per hour.
- The bulb garlic are continuously turned around by the powered rollers to improve the cleaning and all sides are subjected to inspection.
