The BM Modular Silo is the perfect choice for bulk storage of cereals, granulates, meal feed, pellets and more.
Product Details

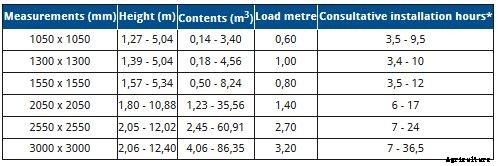

Calculating installing hours
The indicative installation hours stated on this page are subject to the following:
Installation is carried out by two experienced silo installers
A lift or crane must be available
Power or hydraulic tools must be available
The installation is carried out on a flat concrete floor
Room for installation
Optimum lighting
It must be possible to place all parts at the place of installation within easy reach of the installers
Truck for unloading
Technical Data
Specifications
Galvanised sections (Z275) provide long-life durability, ensuring good internal hygiene and optimum silo discharge. The panels can resist high-pressure cleaning.
The modular system is flexible, offering various combinations and the sections are ready for easy on-site assembly. Installation in existing buildings is easy, as all silo parts can pass through a standard doorway.
The silo discharge flanges are 300x300 mm with a shut-off slide and fit BM auger feed units or any customized transi- tion as optional.
The bottom cone is available with 45° or 60° angles. The 45° cone is suitable for easy-flowing materials such as feed pellets, grain and wood pellets. The 60° is the perfect choice for flow challenged materials.
The standard leg length is allowing most standard feed system inlets and augers to be fitted under the silo. If a different discharge height is required, the silo can be delivered with another set of legs. Standard legs are ranging from 100 cm to 300 cm in increments of only 10 cm.
Standard equipment - The Agrosilo is supplied with an inspection door, inspection window, a manually operated shut-off slide and a steel cover.
Injection unit complete with tanker connection flange, piping, filter box and filter bag can also be supplied with the silo as standard.
Optional equipment as level sensors, vibrators and connecting pieces for augers and feed system inlets can be delivered
