After an initial shower of herbicide, it’s time for a targeted and precise application – just the amount that is needed, exactly where it is needed.
Products Details
20x less herbicide
Thanks to the precise detection and discriminating spraying of weeds.
100% autonomous
Works up to 12 hours a day without a human operator – solar powered, no rechargeable batteries.
130 kg of simplicity
Lightweight design minimises soil compaction – reliable, robust and non-hazardous.
KEY POINTS
Our autonomous robot represents a major innovation in weeding methods.
Autonomous
Detection > 95%
Solar powered
Easy to control
Easy maintenance
Lightweight
Non-hazardous
20x less herbicide per application
Up to 30% less expensive than standard treatments
Improved yield: no herbicide left on the crops
Conserves the organic life of the soil, with limited soil compaction
More about Autonomous Robot Weeder

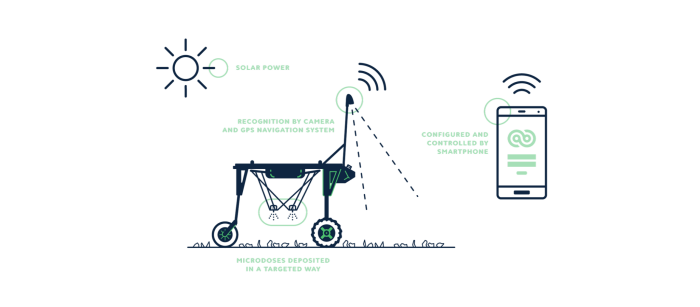

How does it Work?
The robot works without being controlled by a human operator. It covers the ground just by getting its bearings and positioning itself with the help of its camera, GPS RTK and sensors. Its system of vision enables it to follow crop rows, and to detect the presence and position of weeds in and between the rows. Two robotic arms then apply a microdose of herbicide, systematically targeting the weeds that have been detected.
Reliance on solar power makes the robot completely autonomous in terms of energy, even when the weather is overcast. As it adapts its speed to the concentration of weeds, it is most suitable for use in fields where the level of concentration is low to moderate, in order to cover the ground at a reasonable speed. We recommend using the machine after an initial standard application of herbicide, in order to replace subsequent applications and thus save an important amount of herbicide. The machine can be completely controlled and configured by means of a Smartphone app.
Technical Data
Photovoltaic panels
Camera and artificial vision for steering and detection
Navigation by GPS and sensors
Electrical drive system
Rapid robotic arms with sprayers
Tanks for 2 different products
Specifications
Dimensions
2.20 x 1.70 x 1.30 (width x length x height, camera folded down)
Robotic arm
Fast Delta – executing 4000 movements per hour
Navigation
100% of the field covered
Weight
130 kg
Precision
< 2 cm
Tanks
2 x 15 liters – more than enough for one day of autonomous operation
Width of area covered
2 meters
Effectiveness
> 95% of weeds detected and destroyed**
Control and configuration
By Smartphone or Tablet (Android/iOS))
Speed
0.4 m/s (average)
Surface area covered
3 hectares per day,** 7-12 hectares continuously with one pass per week
Communication
Short (WiFi) or long-distance (mobile phone networks)
Space between crops
35 to 70 cm (adjustable)
Energy
Highly efficient solar cells (380W) and battery
Soil humidity / wind
Soil must not be too wet or viscous. Maximum wind 60 km/h at ground level.
